Sure Flow BFH125 2in Cast Ductile Iron Simplex Strainer
Sure Flow BFH125 2in Cast Ductile Iron Simplex Strainer
SKU:BAS-7eb70a
High-capacity 2in Simplex Strainer with quick-open swivel clamp cover. Designed for efficient particulate removal and frequent clean-out.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow BFH125 2in Cast Ductile Iron Simplex Strainer
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow BFH125 2in Cast Ductile Iron Simplex Strainer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

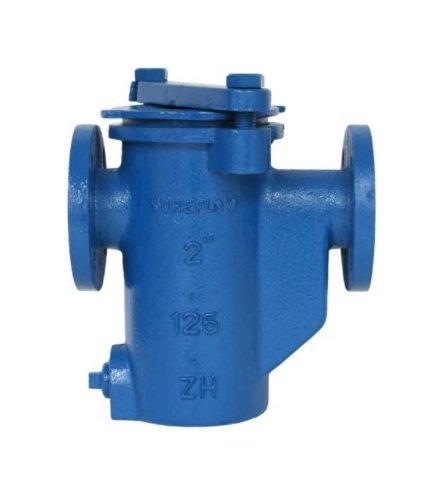

The Sure Flow BFH125 2-inch Quick Open Swivel Clamp Cover Cast Ductile Iron Simplex Strainer is designed for high-capacity applications with Class 125 ASME Flanged end connections. Featuring top removal of the screen in basket form for easy disposal of captured particulates, it ensures efficient clean-out for frequent use. Built with ASTM A536 Class 65-42-12 Ductile Iron body and Buna-N O-Ring cover, this strainer operates at pressures up to 150 psi at 150°F. Compliant with ISO 9001:2008 standards, it offers a perforated standard screen with 0.045in openings and a blow-off NPT size of 1in.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A536 Class 65-42-12 Ductile Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A536 Class 65-42-12 Buna-N O-Ring
Construction Screen Material
Stainless Steel

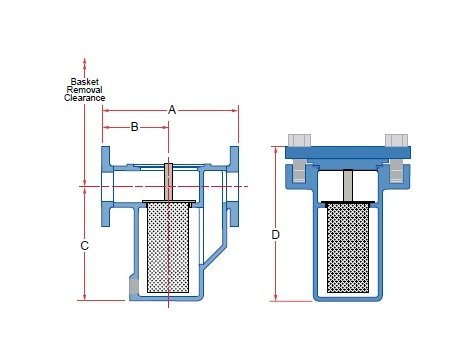

Dimensions Basket Removal Clearance
8 3/4 in
Dimensions Blow Off National Pipe Thread Npt Size
1 in
Dimensions Dimension A
10 1/2 in
Dimensions Dimension B
4 1/4 in
Dimensions Dimension C
7 5/8 in
Dimensions Dimension D
11 13/16 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
59 lb
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
