Sure Flow BFH125 3" Cast Iron Simplex Strainer
Sure Flow BFH125 3" Cast Iron Simplex Strainer
SKU:BAS-710865
Efficiently remove solid particulate with Sure Flow BFH125 3" Cast Iron Simplex Strainer. ASME Class 125 Flanged connections, top-removable basket screen, and ASTM A536 Class 65-42-12 Ductile Iron construction.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Sure Flow BFH125 3" Cast Iron Simplex Strainer
$599.99
Quantity: 1
Claim Your Seller Account
Sure Flow BFH125 3" Cast Iron Simplex Strainer
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BFH125 3" Quick Open Swivel Clamp Cover Cast Ductile Iron Simplex Strainer is designed for high-capacity applications with Class 125 ASME Flanged connections. Featuring a top-removable basket screen for easy cleaning, this strainer ensures efficient removal of solid particulate. Made of ASTM A536 Class 65-42-12 Ductile Iron, it can withstand pressures up to 150 psi at 150°F. With a stainless steel screen and industry certifications like ISO 9001:2008, this strainer offers durability, easy maintenance, and compliance with quality standards.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A536 Class 65-42-12 Ductile Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A536 Class 65-42-12 Buna-N O-Ring
Construction Screen Material
Stainless Steel

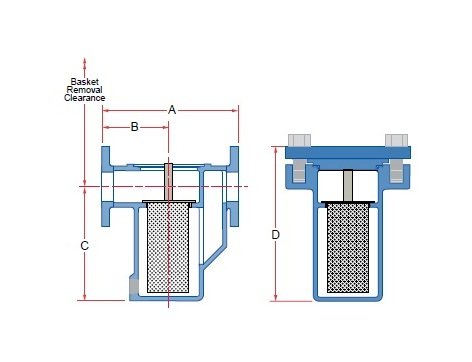

Dimensions Basket Removal Clearance
11 11/16 in
Dimensions Blow Off National Pipe Thread Npt Size
1 in
Dimensions Dimension A
13 1/8 in
Dimensions Dimension B
4 15/16 in
Dimensions Dimension C
10 5/8 in
Dimensions Dimension D
15 13/16 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
101 lb
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
