Sure Flow BFH125 4 in Quick Open Swivel Clamp Cast Ductile Iron Strainer
Sure Flow BFH125 4 in Quick Open Swivel Clamp Cast Ductile Iron Strainer
SKU:BAS-e77dfd
High-capacity BFH125 4in Ductile Iron Strainer with Swivel Clamp Cover for efficient top removal. Meets ISO 9001:2008 standards.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow BFH125 4 in Quick Open Swivel Clamp Cast Ductile Iron Strainer
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow BFH125 4 in Quick Open Swivel Clamp Cast Ductile Iron Strainer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BFH125 4 Inch Quick Open Swivel Clamp Cover Cast Ductile Iron Simplex Strainer is a high-capacity solution with Class 125 ASME flanged connections for efficient top removal of the basket screen, allowing easy disposal of captured particulates. Designed for applications expecting large solid particulate levels and frequent clean-outs, it features a bolted swivel clamp cover for fast screen removal. Constructed with ASTM A536 Class 65-42-12 ductile iron body, stainless steel screen, and Buna-N O-Ring cover, this strainer ensures durability and reliable performance under 150 psi at 150°F. Meets ISO 9001:2008 standards.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A536 Class 65-42-12 Ductile Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A536 Class 65-42-12 Buna-N O-Ring
Construction Screen Material
Stainless Steel

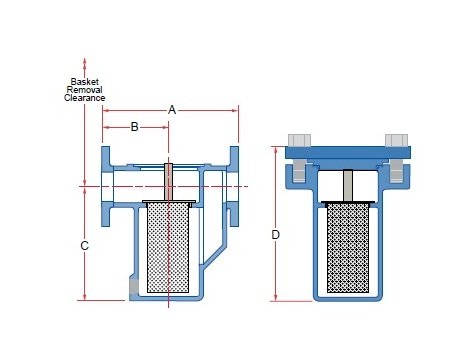

Dimensions Basket Removal Clearance
12 in
Dimensions Blow Off National Pipe Thread Npt Size
1 in
Dimensions Dimension A
16 3/4 in
Dimensions Dimension B
6 5/16 in
Dimensions Dimension C
10 3/4 in
Dimensions Dimension D
17 1/16 in
Dimensions Prefix Size
0400
Dimensions Shipping Weight
197 lb
Dimensions Size
4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
