Sure Flow BFH125 6-Inch Quick Open Swivel Clamp Cast Ductile Iron Simplex Strainer
Sure Flow BFH125 6-Inch Quick Open Swivel Clamp Cast Ductile Iron Simplex Strainer
SKU:BAS-d2ac7c
Efficiently filter solid particulates with the Sure Flow BFH125 6-Inch Iron Simplex Strainer. Easy maintenance & high flow capacity. ASTM Ductile Iron construction.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow BFH125 6-Inch Quick Open Swivel Clamp Cast Ductile Iron Simplex Strainer
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow BFH125 6-Inch Quick Open Swivel Clamp Cast Ductile Iron Simplex Strainer
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BFH125 6-Inch Quick Open Swivel Clamp Cover Cast Ductile Iron Simplex Strainer is designed for high-capacity applications with Class 125 ASME flanged connections. Featuring top removal of the stainless steel screen basket for easy disposal of solid particulates, this strainer offers a bolted 'Swivel Clamp Cover' for quick screen maintenance. With ASTM A536 Class 65-42-12 Ductile Iron construction and a Buna-N O-Ring cover, this strainer ensures durability and efficient operation at pressures up to 150 psi. Meets ISO 9001:2008 standards.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A536 Class 65-42-12 Ductile Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A536 Class 65-42-12 Buna-N O-Ring
Construction Screen Material
Stainless Steel

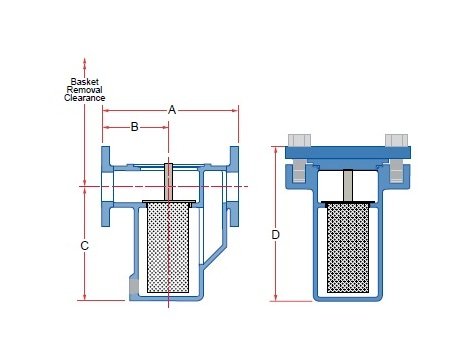

Dimensions Basket Removal Clearance
19 3/8 in
Dimensions Blow Off National Pipe Thread Npt Size
1 in
Dimensions Dimension A
19 5/8 in
Dimensions Dimension B
7 1/2 in
Dimensions Dimension C
18 3/8 in
Dimensions Dimension D
26 in
Dimensions Prefix Size
0600
Dimensions Shipping Weight
362 lb
Dimensions Size
6 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
