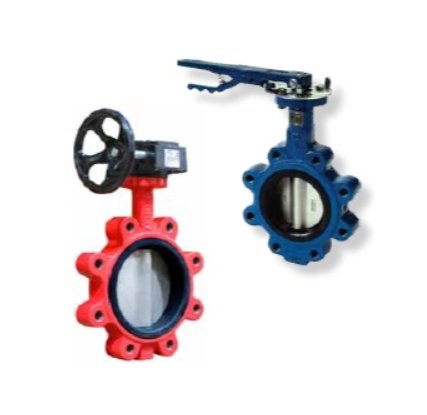

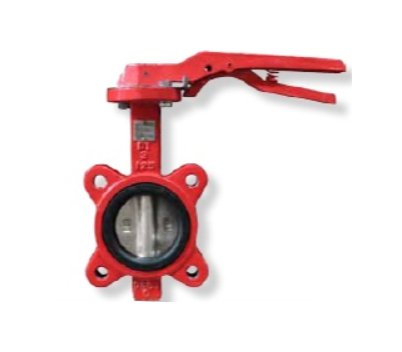

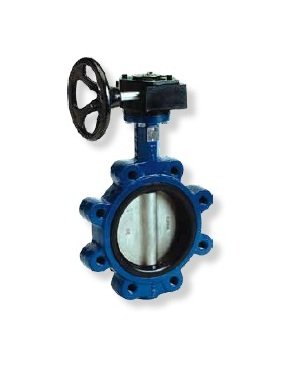

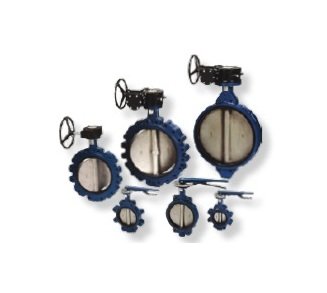

Sure Flow BFVL 3 Inch Butterfly Valve
Sure Flow BFVL 3 Inch Butterfly Valve
SKU:BUT-cde9f0
Sure Flow BFVL 3 Inch Butterfly Valve: Durable ASTM A-536 Ductile Iron body, ISO 9001:2008 certified for various applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow BFVL 3 Inch Butterfly Valve
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow BFVL 3 Inch Butterfly Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BFVL 3 Inch Butterfly Valve is a top-of-the-line solution designed for a range of applications in industrial settings, municipal systems, and HVAC installations. This butterfly valve features a durable American Society for Testing and Materials (ASTM) A-536 Ductile Iron body with 316 Stainless Steel disc material, ensuring high strength and corrosion resistance. With an ISO 9001:2008 certification, this valve is suitable for on/off isolation, throttling, and dead-end services with minimal leakage. Its extended neck design allows for easy insulation application, while the one-piece construction ensures reliability and ease of operation.
Product Specifications
Additional Information Additional Information
Bi-directional dead-end capabilityAll Butterfly Valve bodies are ductile iron 65-45-12. They are bi-directionally tested in both directions and are bubble tight with zero leakage. Lug style bodies are full rated and suitable for ASM E Class 125 and ASME Class 150 flanges. Wafer style bodies are suitable for ASME Class 125, ASME Class 150, JIS, DIN or B.S. flanges. Secondary seals are self-adjusting. All elastomers and all internal bearings are non-corrosive and non-metallic. EPDM seats are suitable for 250ºF sustained high temperature and capable of 2000 ppm on chlorinated applications.TestingAll valves are factory tested on both sides for bi-directional installations to zero leakage and bubble tight.
Benefits Benefits
Allows for 2" insulationHigh strength body when in tension (lug body)Elimination of shaft to body seizureExcellent in full vacuum distortion proof primary shaft seal, minimal seat movement and consistent displacement on closingHigh torsional capabilities with zero disc deflection
Dimensions Shipping Weight
14 lb
Dimensions Size
3 in
Features Features
Extended neck design for ample application of insulation.One-piece / uni-body construction of cast ductile iron designed to accommodate ASME Class 125 flanges or ASME Class 150 flanges.Integral ISO 5211 mounting flange will accept all styles of hand levers, multi-turn manual gears and power operators/actuators.Acetal Plastic "Acetal" stem bushings to assure long life even during extended periods of inactivity and to decrease operating torque which eases manual operation or power assisted operation.One-piece resilient seat with a molded-in (integral) o-ring seal eliminates the need for additional flange gaskets. The Butterfly Valve body is designed to limit seat compression to optimum dimensions.One-piece resilient phenolic back seat has molded-in (integral) o-ring seal for upper and lower valve shafts and works with disc edge hub seals to provide a double stem seal.Phenolic backed seat features:Dimensionally stable seat sealing surfaceMinimal seat wear, extending seat lifeBlow-out proof seatNon-distorting shaft hole with molded-in (integral) o-ring sealSuitable for open left or open right operation.Two-piece shaft designButterfly Valve is standard with a hard back seat. There is no movement of the seat which results in a constant torque and dead end zero leakageButterfly Valves are available in sizes up to 48 inches.
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Installation Installation
Butterfly Valves are manufactured in accordance with the specifications from ISO 5752, MSS SP-67, and API-609, American Petroleum Institute latest revisions. Both Lug and Wafer series valves are designed for ASME Class 125 and ASM E Class 150 flanges. Valve sizes from 2" to 12" are rated at 250 psi WOG service and valve sizes from 14" and larger are rated at 200 psi WOG service. All Butterfly Valves are full rated on dead-end service.
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Contact factory for certification.
Specifications Body Material
American Society for Testing and Materials (ASTM) A-536 Ductile Iron
Specifications Butterfly Valve Type
Lug
Specifications Disc Material
316 Stainless Steel | Bronze | Ni/Ductile A536
Specifications Gear Weight
4 lb
Specifications Lever Weight
3 lb
Specifications Operator
10 Position Lever | Bare Stem | Gear Operator
Specifications Seat Material
Buna | Ethylene Propylene Diene Monomer (EPDM)
Applications Applications
On/off isolationDead-end service/removal of downstream pipingHeating, ventilation and air conditioning systemsIndustrial process pipingMunicipal raw water intakeMunicipal chlorinated water systems (2000 ppm)Municipal feed water and reservoirThrottling and process controlFull vacuumAeration and blower installations
