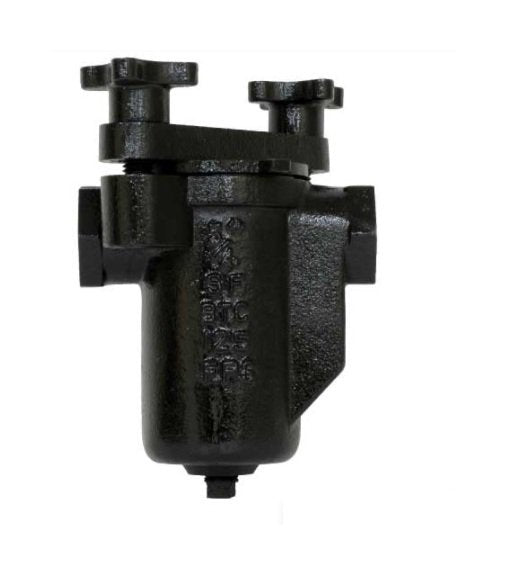

Sure Flow BTC125 2-Inch NPT Cast Iron Simplex Basket Strainer
Sure Flow BTC125 2-Inch NPT Cast Iron Simplex Basket Strainer
SKU:BAS-136080
Top-quality Sure Flow BTC125 2' NPT Cast Iron Basket Strainer for efficient solid particulate filtration. Easy maintenance with Swivel Clamp Cover & BUNA-N O-ring seals.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow BTC125 2-Inch NPT Cast Iron Simplex Basket Strainer
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow BTC125 2-Inch NPT Cast Iron Simplex Basket Strainer
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BTC125 2-Inch NPT Cast Iron Simplex Basket Strainer is designed for applications with high solid particulate volume. Featuring a top removal basket screen with a lifting handle, clean-out is hassle-free. The 'Swivel Clamp Cover' allows tool-free screen removal, while the BUNA-N O-ring seals on the cover eliminate the need for gasket changes. Constructed with ASTM A126 Class B Cast Iron, stainless steel screen, and designed to withstand Operating Pressure up to 200 psi, this strainer ensures efficient filtration under rigorous conditions. Compliant with ISO 9001:2008 (Intertek) standards, it offers reliability and ease of maintenance for industrial applications.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A126 Class B Buna-N O-Ring
Construction Screen Material
Stainless Steel

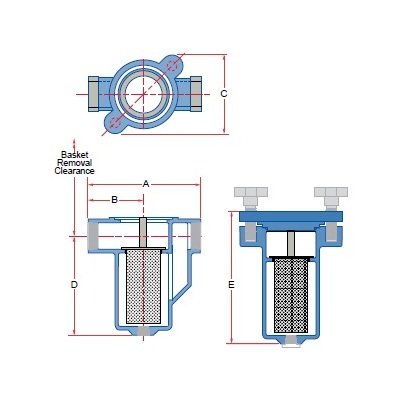

Dimensions Basket Removal Clearance
9 1/4 in
Dimensions Dimension A
9 5/8 in
Dimensions Dimension B
4 1/2 in
Dimensions Dimension C
6 5/8 in
Dimensions Dimension D
7 1/8 in
Dimensions Dimension E
9 3/4 in
Dimensions Drain Size
1 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
50 lb
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
