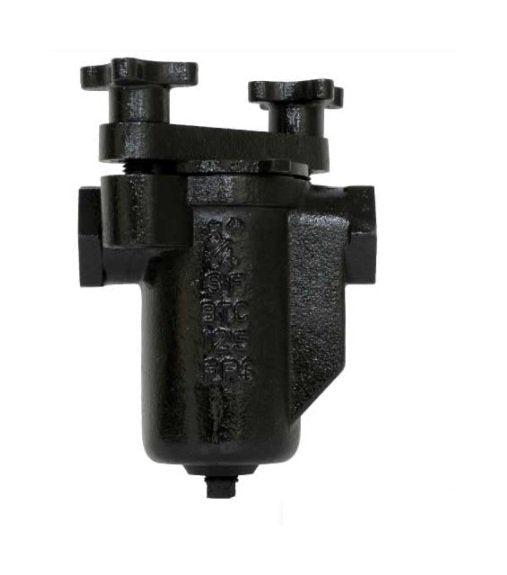

Sure Flow BTC125 3 Inch NPT Cast Iron Swivel Clamp Simplex Basket Strainer
Sure Flow BTC125 3 Inch NPT Cast Iron Swivel Clamp Simplex Basket Strainer
SKU:BAS-f72b16
Efficient NPT Cast Iron Simplex Basket Strainer for high solid particulate applications. Quick open design, ASTM A126 Class B construction, meets ISO 9001:2008.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow BTC125 3 Inch NPT Cast Iron Swivel Clamp Simplex Basket Strainer
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow BTC125 3 Inch NPT Cast Iron Swivel Clamp Simplex Basket Strainer
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BTC125 3 Inch NPT Cast Iron Simplex Basket Strainer is designed for applications with high solid particulate content, allowing for easy removal and disposal of captured particulates with its top removal basket screen. The Quick Open Swivel Clamp Cover enables tool-free, fast screen removal, while the BUNA-N O-ring seal eliminates the need for frequent gasket changes during servicing. Constructed with ASTM A126 Class B Cast Iron body and stainless steel screen, this strainer meets ISO 9001:2008 standards and operates at up to 200 psi at 150°F water, oil, gas (WOG) temperature.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A126 Class B Buna-N O-Ring
Construction Screen Material
Stainless Steel

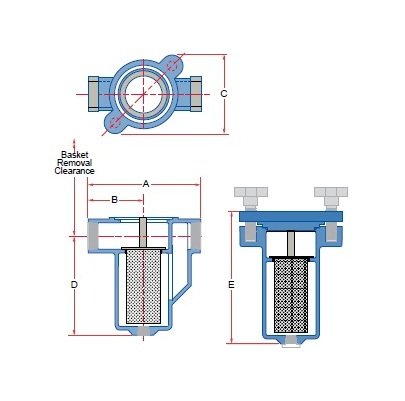

Dimensions Basket Removal Clearance
15 in
Dimensions Dimension A
13 1/4 in
Dimensions Dimension B
5 3/8 in
Dimensions Dimension C
8 5/16 in
Dimensions Dimension D
12 in
Dimensions Dimension E
15 3/4 in
Dimensions Drain Size
1 1/2 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
70 lb
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
