Sure Flow BTC150SS 1 1/2" Cast Stainless Steel Basket Strainer
Sure Flow BTC150SS 1 1/2" Cast Stainless Steel Basket Strainer
SKU:BAS-6f9a58
Durable Sure Flow BTC150SS 1 1/2" Cast Stainless Steel Basket Strainer for efficient solid particulate filtration with 275 psi pressure rating.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow BTC150SS 1 1/2" Cast Stainless Steel Basket Strainer
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow BTC150SS 1 1/2" Cast Stainless Steel Basket Strainer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

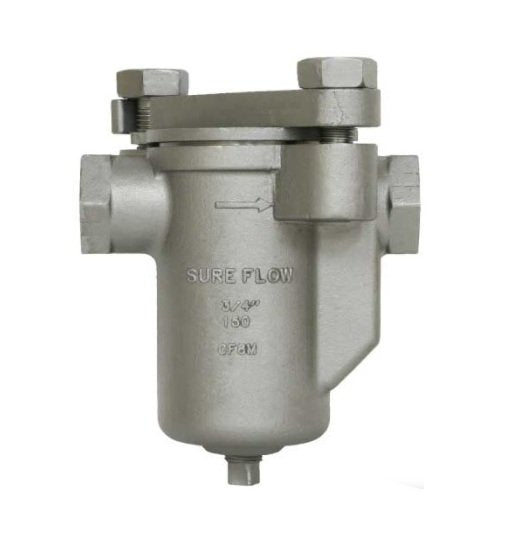

The Sure Flow BTC150SS is a robust simplex basket strainer made of ASTM A351 Grade CF8M Cast 316 Stainless Steel, designed for applications with solid particulate. Featuring a quick-open swivel clamp cover for tool-free screen removal, it allows easy cleaning and maintenance. With a pressure rating of 275 psi at 100°F, perforated standard screen of 1/32", and durable fluorocarbon O-ring seals, this strainer meets ISO 9001:2008 standards. Ideal for industrial settings where frequent clean-out is required.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M O-Ring Fluorocarbon (FKM)
Construction Screen Material
Stainless Steel

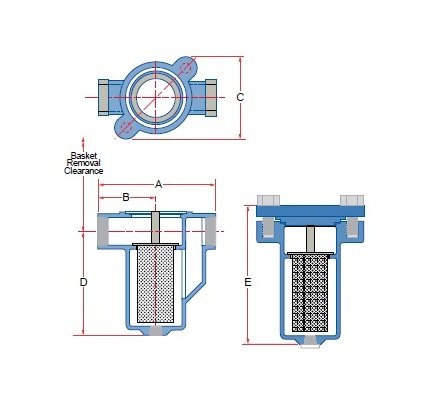

Dimensions Basket Removal Clearance
9 in
Dimensions Dimension A
8 3/8 in
Dimensions Dimension B
4 1/8 in
Dimensions Dimension C
5 7/8 in
Dimensions Dimension D
7 3/8 in
Dimensions Dimension E
9 3/4 in
Dimensions Drain Size
3/4 in
Dimensions Prefix Size
0150
Dimensions Shipping Weight
30 lb
Dimensions Size
1 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
