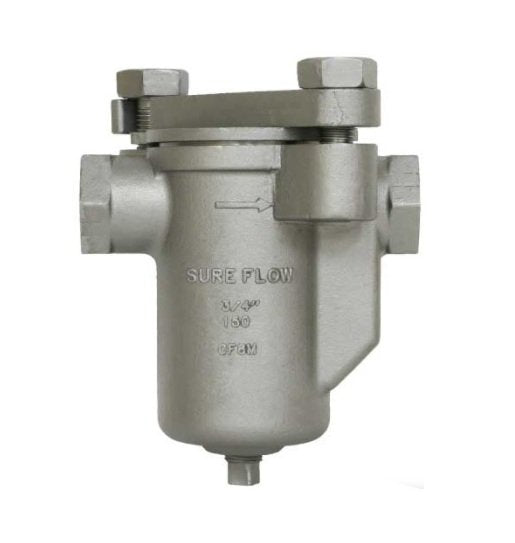

Sure Flow BTC150SS 3/4" Cast Stainless Steel Simplex Basket Strainer
Sure Flow BTC150SS 3/4" Cast Stainless Steel Simplex Basket Strainer
SKU:BAS-f69ed7
Efficiently capture and remove solid particulates with the Sure Flow BTC150SS 3/4" Cast Stainless Steel Basket Strainer, featuring swivel clamp cover for easy maintenance. Meets ISO 9001:2008 standards.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Sure Flow BTC150SS 3/4" Cast Stainless Steel Simplex Basket Strainer
$259.99
Quantity: 1
Claim Your Seller Account
Sure Flow BTC150SS 3/4" Cast Stainless Steel Simplex Basket Strainer
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BTC150SS 3/4" Cast Stainless Steel Simplex Basket Strainer is designed for applications with high solid particulate content, allowing for easy removal and disposal of captured debris. Featuring a swivel clamp cover for effortless screen removal without tools, this basket strainer is constructed with ASTM A351 Grade CF8M Cast 316 Stainless Steel for durability. With a perforated standard screen and O-ring Fluorocarbon (FKM) seals, it meets ISO 9001:2008 standards for reliable performance. Operating at 275 psi and suitable for WOG fluids, this basket strainer ensures efficient filtration and maintenance.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M O-Ring Fluorocarbon (FKM)
Construction Screen Material
Stainless Steel

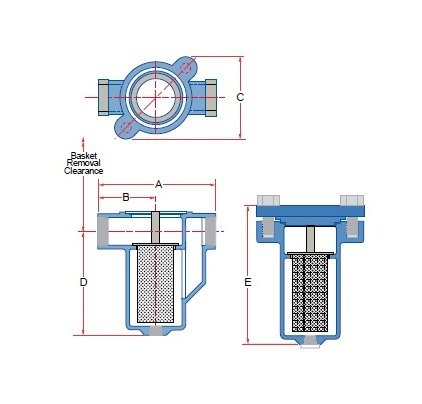

Dimensions Basket Removal Clearance
6 1/2 in
Dimensions Dimension A
6 7/8 in
Dimensions Dimension B
3 5/16 in
Dimensions Dimension C
5 7/16 in
Dimensions Dimension D
5 1/4 in
Dimensions Dimension E
7 5/8 in
Dimensions Drain Size
1/2 in
Dimensions Prefix Size
0075
Dimensions Shipping Weight
18 lb
Dimensions Size
3/4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
