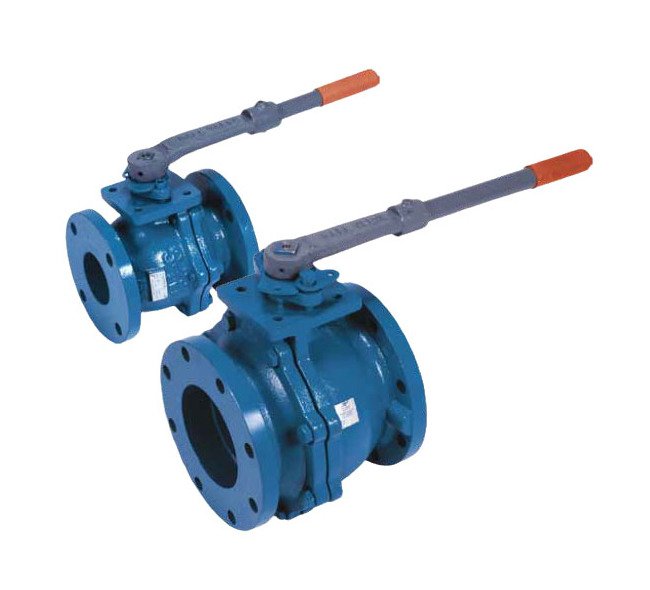

The Sure Flow BV125IS 4-Inch Cast Iron Full Port Ball Valve is a reliable solution for industrial applications requiring positive shut off and easy maintenance. With a stainless steel ball and stem, Teflon seats, and a blow-out proof stem, this valve ensures long-lasting performance. It meets ANSI B16.10 standards, offering a seamless replacement for heavy Gate Valves. Ideal for institutions seeking durability and efficiency in fluid control.
Product Specifications
Additional Information Additional Information
The valve shall comply with American standards for end to end or face to face dimensions (ANSI B16.10) for Class 125 Cast Iron Flanged Gate Valves. Valves shall have a Full Port Stainless Ball with PTFE Seats. The dimensions and drilling of the end flanges conform to Cast Iron Flanged Standard ANSI B16.1.
Construction Construction
Name - LeverDescription - Ductile IronName - ScrewDescription - Carbon SteelName - BoltDescription - Carbon SteelName - GlandDescription - Cast IronName - PackingDescription - Polytetrafluoroethylene (PTFE)Name - StemDescription - Stainless SteelName - Thrust WasherDescription - Polytetrafluoroethylene (PTFE)Name - Seat RingDescription - Polytetrafluoroethylene (PTFE)Name - SpringDescription - Carbon SteelName - BallDescription - Stainless SteelName - BodyDescription - Cast IronName - Body GasketDescription - Polytetrafluoroethylene (PTFE)Name - Body BoltDescription - Carbon Steel

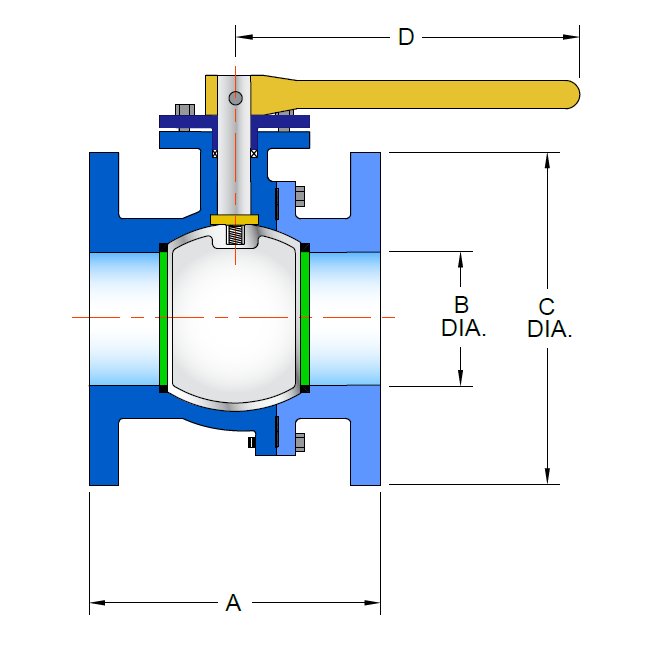

Dimensions Dimension A
9 in
Dimensions Dimension B
4 in
Dimensions Dimension C
9 in
Dimensions Dimension D
18 in
Dimensions Prefix Size
400
Dimensions Shipping Weight
86 lb
Dimensions Size
4 in
Features Features
Stainless Steel Ball and StemPositive Shut Off / Teflon SeatsBlow-Out Proof StemOpen or Closed or Simple throttlingReplaces Gate Valves - same End to End Dimension to ANSI B16.10Tapped Actuator Mounting Pad for ActuationFused Epoxy CoatingFull Open or Closed position lockable.
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Maximum Operating Torque Maximum Operating Torque
Torque based on a clean water application.
Maximum Operating Torque Torque
1416 lb
Maximum Operating Torque Valve Flow Coefficient Cv
2400 gpm
Note Note

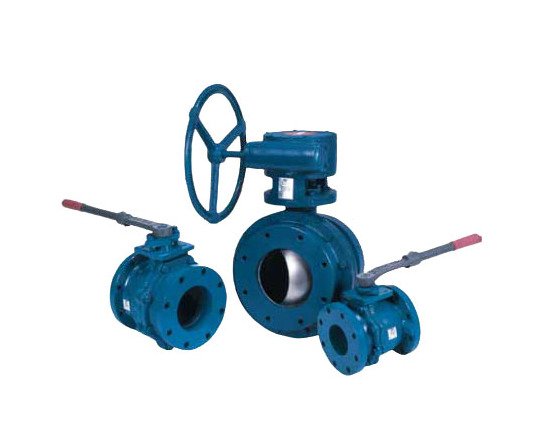

Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.The Flow Coefficient (Cv) is the number of gallons per minute of water flowing through a given size restriction at a pressure drop of one psi.Standard with handwheel and gear actuator.
