Sure Flow BV125IS 6 Inch Cast Iron Full Port Ball Valve
Sure Flow BV125IS 6 Inch Cast Iron Full Port Ball Valve
SKU:BAL-60490e
Replace heavy gate valves with Sure Flow BV125IS 6 Inch Cast Iron Full Port Ball Valve, offering positive shut off and easy maintenance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow BV125IS 6 Inch Cast Iron Full Port Ball Valve
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow BV125IS 6 Inch Cast Iron Full Port Ball Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

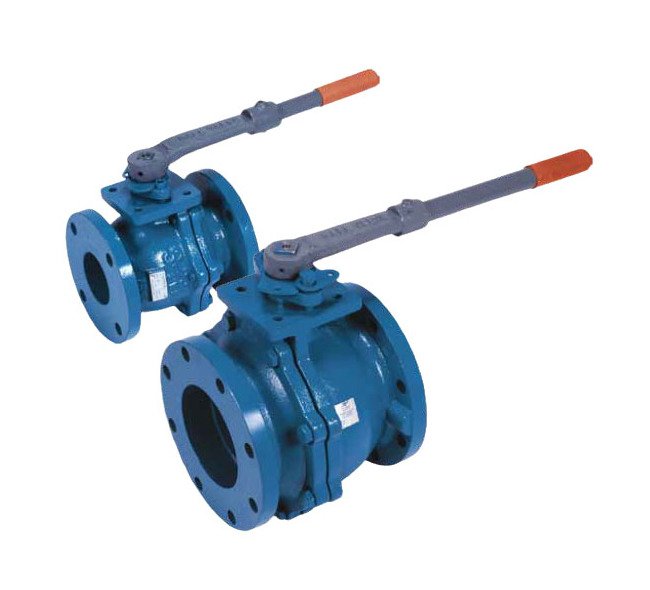

The Sure Flow BV125IS 6 Inch Cast Iron Full Port Ball Valve is a superior alternative to heavy and difficult-to-maintain gate valves. With a full port stainless steel ball and PTFE seats, this valve offers positive shut off, blow-out proof stem, and the ability for simple throttling. It conforms to ANSI B16.10 standards, making it a reliable choice for various applications. The valve is constructed with durable materials like stainless steel and ductile iron, ensuring longevity and efficient performance.
Product Specifications
Additional Information Additional Information
The valve shall comply with American standards for end to end or face to face dimensions (ANSI B16.10) for Class 125 Cast Iron Flanged Gate Valves. Valves shall have a Full Port Stainless Ball with PTFE Seats. The dimensions and drilling of the end flanges conform to Cast Iron Flanged Standard ANSI B16.1.
Construction Construction
Name - LeverDescription - Ductile IronName - ScrewDescription - Carbon SteelName - BoltDescription - Carbon SteelName - GlandDescription - Cast IronName - PackingDescription - Polytetrafluoroethylene (PTFE)Name - StemDescription - Stainless SteelName - Thrust WasherDescription - Polytetrafluoroethylene (PTFE)Name - Seat RingDescription - Polytetrafluoroethylene (PTFE)Name - SpringDescription - Carbon SteelName - BallDescription - Stainless SteelName - BodyDescription - Cast IronName - Body GasketDescription - Polytetrafluoroethylene (PTFE)Name - Body BoltDescription - Carbon Steel

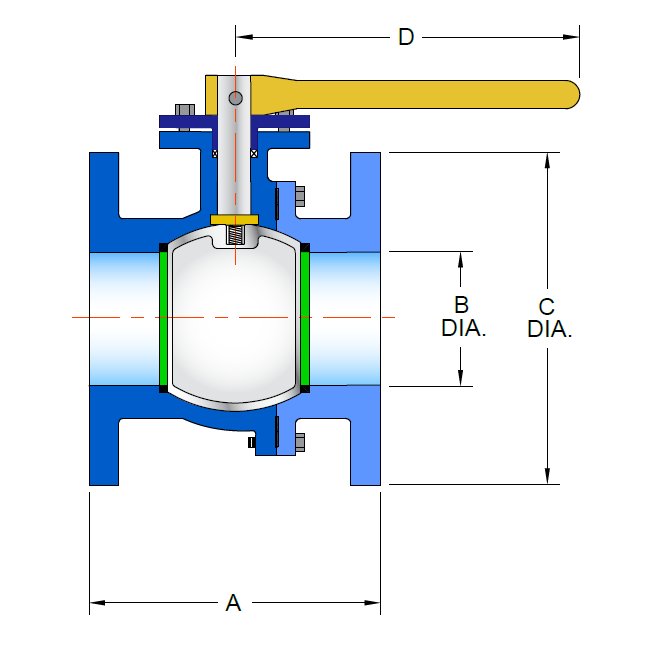

Dimensions Dimension A
10 1/2 in
Dimensions Dimension B
6 in
Dimensions Dimension C
11 in
Dimensions Dimension D
21 in
Dimensions Prefix Size
600
Dimensions Shipping Weight
148 lb
Dimensions Size
6 in
Features Features
Stainless Steel Ball and StemPositive Shut Off / Teflon SeatsBlow-Out Proof StemOpen or Closed or Simple throttlingReplaces Gate Valves - same End to End Dimension to ANSI B16.10Tapped Actuator Mounting Pad for ActuationFused Epoxy CoatingFull Open or Closed position lockable.
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Maximum Operating Torque Maximum Operating Torque
Torque based on a clean water application.
Maximum Operating Torque Torque
3200 lb
Maximum Operating Torque Valve Flow Coefficient Cv
4100 gpm
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.The Flow Coefficient (Cv) is the number of gallons per minute of water flowing through a given size restriction at a pressure drop of one psi.Standard with handwheel and gear actuator.
