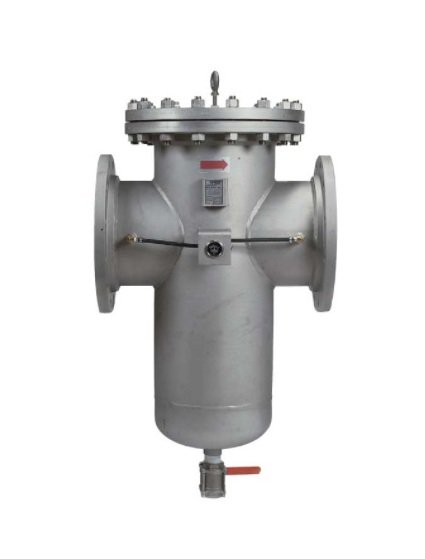

The Sure Flow BW150SS 18" Stainless Steel Fabricated Basket Strainer offers high-quality filtration for industrial applications. Constructed with durable stainless steel, this basket strainer is designed to withstand varying operating pressures and temperatures. With customizable options including quick opening covers, various end connections, and specialized materials, this basket strainer is adaptable to specific project requirements. Certified to ISO 9001:2008 standards, ensuring consistent quality and performance.
Product Specifications
Additional Information Additional Information
Flange sizes can be selected to fit existing piping, or to achieve the required clean pressure drop. Maintenance reducing features include Automatic Flush and Hinged Cover, with or without Davit Assembly.
Construction Body Material
Stainless Steel
Construction Construction

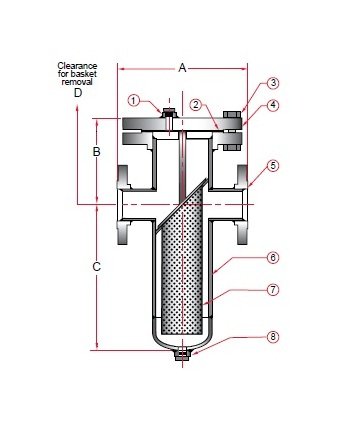

Item - 1Description - Vent AssemblyItem - 2Description - GasketItem - 3Description - BoltingItem - 4Description - CoverItem - 5Description - Inlet/Outlet FlangeItem - 6Description - Body Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
24 in
Dimensions Dimension A
42 in
Dimensions Dimension B
18 1/4 in
Dimensions Dimension C
39 in
Dimensions Dimension D
70 in
Dimensions Prefix Size
1800
Dimensions Size
18 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Strainer Type
Basket
