Sure Flow BW150SS 6 Inch Stainless Steel Fabricated Basket Strainer
Sure Flow BW150SS 6 Inch Stainless Steel Fabricated Basket Strainer
SKU:BAS-a5051c
Sure Flow BW150SS 6 Inch Stainless Steel Fabricated Basket Strainer - Durable, customizable, maintenance-friendly.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Sure Flow BW150SS 6 Inch Stainless Steel Fabricated Basket Strainer
$249.99
Quantity: 1
Claim Your Seller Account
Sure Flow BW150SS 6 Inch Stainless Steel Fabricated Basket Strainer
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

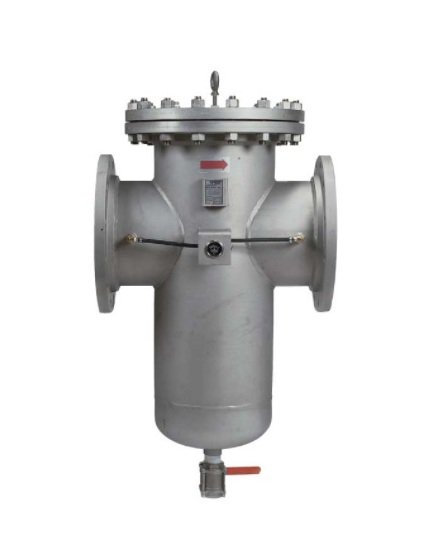

The Sure Flow BW150SS 6 Inch Stainless Steel Fabricated Basket Strainer is a top-tier solution for precise filtration needs in industrial settings. Constructed with durable stainless steel, this strainer offers exceptional resistance to corrosion and high temperatures. With customizable basket sizes and various optional features like Quick Opening Covers, Custom Baskets of special alloys, and more, this strainer can be tailored to meet specific operational requirements. It complies with ISO 9001:2008 standards and offers maintenance-reducing features like Automatic Flush and Hinged Cover for seamless operation.
Product Specifications
Additional Information Additional Information
Flange sizes can be selected to fit existing piping, or to achieve the required clean pressure drop. Maintenance reducing features include Automatic Flush and Hinged Cover, with or without Davit Assembly.
Construction Body Material
Stainless Steel
Construction Construction

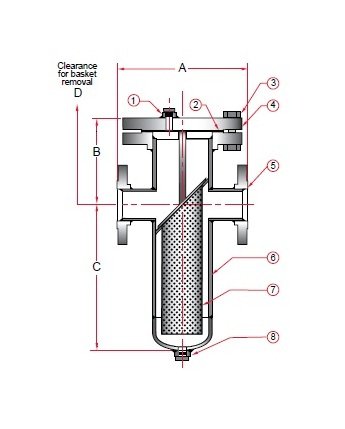

Item - 1Description - Vent AssemblyItem - 2Description - GasketItem - 3Description - BoltingItem - 4Description - CoverItem - 5Description - Inlet/Outlet FlangeItem - 6Description - Body Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
10 in
Dimensions Dimension A
20 in
Dimensions Dimension B
9 1/2 in
Dimensions Dimension C
17 in
Dimensions Dimension D
34 in
Dimensions Prefix Size
0600
Dimensions Size
6 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Strainer Type
Basket
