Sure Flow BW300SS 8 Inch Stainless Steel Fabricated Basket Strainer
Sure Flow BW300SS 8 Inch Stainless Steel Fabricated Basket Strainer
SKU:BAS-63480c
Discover the durable Sure Flow BW300SS 8 Inch Stainless Steel Basket Strainer for reliable filtration in industrial settings.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow BW300SS 8 Inch Stainless Steel Fabricated Basket Strainer
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow BW300SS 8 Inch Stainless Steel Fabricated Basket Strainer
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

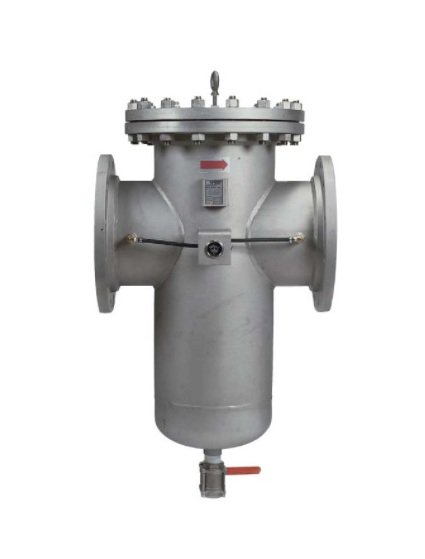

The Sure Flow BW300SS 8 Inch Stainless Steel Fabricated Basket Strainer is engineered for exceptional durability and optimal performance. Constructed with high-quality stainless steel, this basket strainer is designed to withstand high pressures and temperatures, making it ideal for a wide range of industrial applications. With customizable options including quick opening covers, various body materials, custom baskets, and more, this strainer can be tailored to meet specific requirements. Additionally, it complies with ISO 9001:2008 standards, ensuring top-notch quality and reliability.
Product Specifications
Additional Information Additional Information
Flange sizes can be selected to fit existing piping, or to achieve the required clean pressure drop. Maintenance reducing features include Automatic Flush and Hinged Cover, with or without Davit Assembly.
Construction Body Material
Stainless Steel

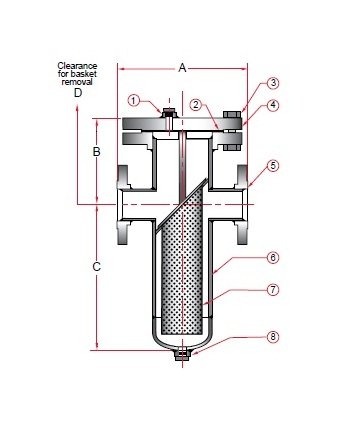

Construction Construction
Item - 1Description - Vent AssemblyItem - 2Description - GasketItem - 3Description - BoltingItem - 4Description - CoverItem - 5Description - Inlet/Outlet FlangeItem - 6Description - Body Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
12 in
Dimensions Dimension A
23 in
Dimensions Dimension B
14 in
Dimensions Dimension C
21 in
Dimensions Dimension D
42 1/2 in
Dimensions Prefix Size
0800
Dimensions Size
8 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Operating Pressures And Temperatures Pressure At 422 Degree Fahr
300 psi
Specifications Strainer Type
Basket
