The Sure Flow BW600 24 Inch Carbon Steel Fabricated Basket Strainer is a premium solution for industrial filtration needs. With a durable carbon steel construction and customizable options including quick opening covers, various end connections, and special coatings, this strainer ensures efficient, reliable performance in diverse applications. Meeting ISO 9001:2008 standards, the BW600 is designed for high-pressure environments and offers flexibility for customization, making it a top choice for demanding industries.
Product Specifications
Construction Body Material
Carbon Steel

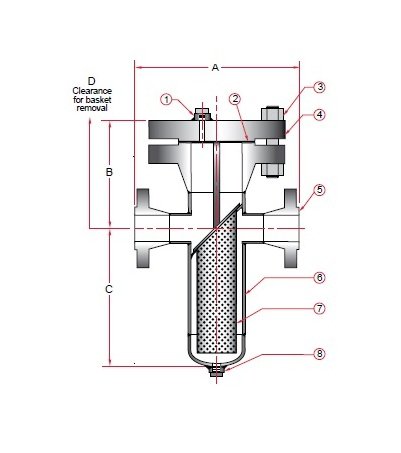

Construction Construction
Item - 1Description - Vent AssemblyItem - 2Description - GasketItem - 3Description - BoltingItem - 4Description - CoverItem - 5Description - Inlet/Outlet FlangeItem - 6Description - Body Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
36 in
Dimensions Dimension A
68 in
Dimensions Dimension B
38 in
Dimensions Dimension C
54 in
Dimensions Dimension D
112 in
Dimensions Prefix Size
2400
Dimensions Size
24 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1480 psi
Operating Pressures And Temperatures Pressure At 489 Degree Fahr
600 psi
Specifications Strainer Type
Basket
