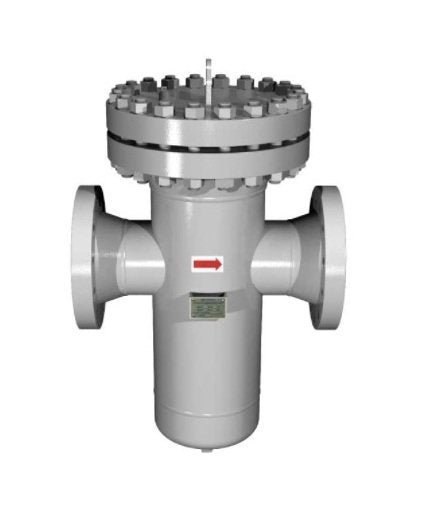

Sure Flow BW600SS 3 Inch Stainless Steel Fabricated Basket Strainer
Sure Flow BW600SS 3 Inch Stainless Steel Fabricated Basket Strainer
SKU:BAS-d66775
Top-tier stainless steel basket strainer for high-pressure applications, customizable options, ISO 9001:2008 compliant.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow BW600SS 3 Inch Stainless Steel Fabricated Basket Strainer
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow BW600SS 3 Inch Stainless Steel Fabricated Basket Strainer
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience top-tier filtration with the Sure Flow BW600SS 3 Inch Stainless Steel Fabricated Basket Strainer. Crafted from durable stainless steel, this strainer excels in high-pressure and high-temperature applications. The customizable options, including quick opening covers and various end connections, make it versatile for diverse needs. Meeting ISO 9001:2008 standards, this strainer ensures precision, reliability, and efficiency in fluid filtration.
Product Specifications
Construction Body Material
Stainless Steel
Construction Construction

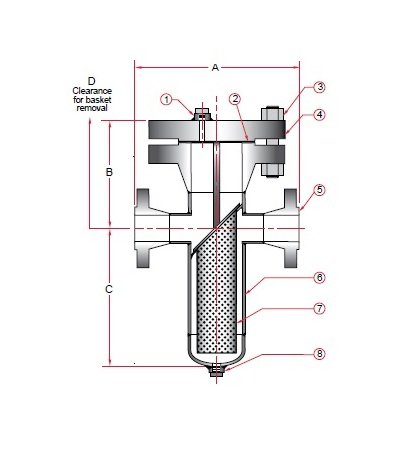

Item - 1Description - Vent AssemblyItem - 2Description - GasketItem - 3Description - BoltingItem - 4Description - CoverItem - 5Description - Inlet/Outlet FlangeItem - 6Description - Body Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
6 in
Dimensions Dimension A
23 7/8 in
Dimensions Dimension B
10 3/4 in
Dimensions Dimension C
15 3/4 in
Dimensions Dimension D
31 1/2 in
Dimensions Prefix Size
0300
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 489 Degree Fahr
600 psi
Specifications Strainer Type
Basket
