Sure Flow BW600SS 4" Stainless Steel Basket Strainer
Sure Flow BW600SS 4" Stainless Steel Basket Strainer
SKU:BAS-ffa614
Sure Flow Stainless Steel Basket Strainer - Durable, High-Pressure Filtration Solution for Industrial Applications
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Sure Flow BW600SS 4" Stainless Steel Basket Strainer
$599.99
Quantity: 1
Claim Your Seller Account
Sure Flow BW600SS 4" Stainless Steel Basket Strainer
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

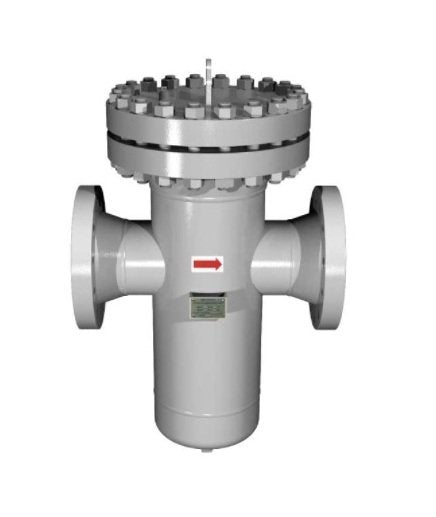

The Sure Flow BW600SS 4" Stainless Steel Fabricated Basket Strainer is a high-quality product designed for efficient filtration in demanding industrial settings. Constructed with durable stainless steel, this basket strainer can withstand operating pressures up to 1440 psi for water, oil, and gas applications. With a range of custom options including quick opening covers, various body materials, and multiple basket configurations, this strainer offers versatility and reliability. Certified to meet ISO 9001:2008 standards, this strainer ensures quality and performance in line with industry regulations.
Product Specifications
Construction Body Material
Stainless Steel
Construction Construction

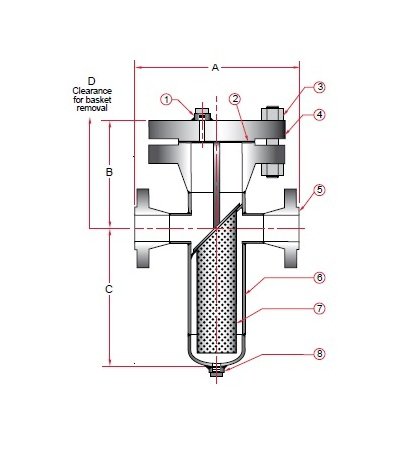

Item - 1Description - Vent AssemblyItem - 2Description - GasketItem - 3Description - BoltingItem - 4Description - CoverItem - 5Description - Inlet/Outlet FlangeItem - 6Description - Body Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
8 in
Dimensions Dimension A
23 7/8 in
Dimensions Dimension B
12 3/16 in
Dimensions Dimension C
17 3/8 in
Dimensions Dimension D
38 in
Dimensions Prefix Size
0400
Dimensions Size
4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 489 Degree Fahr
600 psi
Specifications Strainer Type
Basket
