Sure Flow BW600SS Stainless Steel Basket Strainer

Name: Sure Flow BW600SS Stainless Steel Basket Strainer
Brand: Sure Flow Equipment, Inc.
SKU: BAS-b9fed5
Price: 349.99 USD
Availability: OutOfStock

SKU:BAS-b9fed5

Sure Flow BW600SS Stainless Steel Basket Strainer - Durable, efficient, and customizable for industrial fluid filtration needs.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

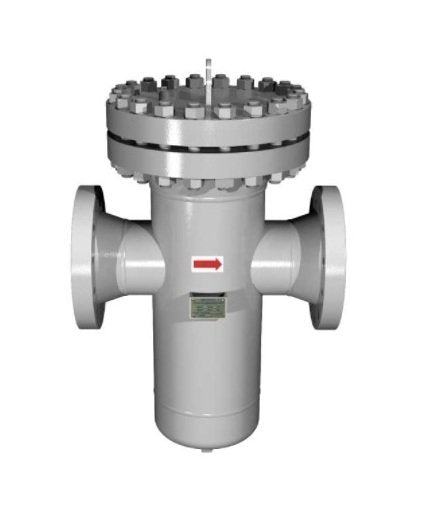

The Sure Flow BW600SS 2 1/2-inch Stainless Steel Fabricated Basket Strainer is a highly durable and efficient solution for filtering industrial fluids. Constructed with premium stainless steel, this basket strainer offers exceptional resistance to corrosion and high temperatures. Its customizable options include quick opening covers, various body materials, and custom basket materials like 316SS and Monel. Meeting ISO 9001:2008 standards, this strainer is a reliable choice for critical applications where quality and performance are paramount.

Product Specifications

Construction Body Material

Stainless Steel

Construction Construction

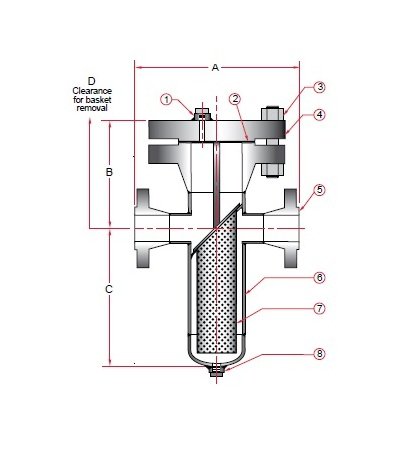

Item - 1Description - Vent AssemblyItem - 2Description - GasketItem - 3Description - BoltingItem - 4Description - CoverItem - 5Description - Inlet/Outlet FlangeItem - 6Description - Body Assembly

Custom Strainer Options Optional Features

Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available

Custom Strainer Options Special Construction

Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns

Dimensions Body Size

6 in

Dimensions Dimension A

18 3/8 in

Dimensions Dimension B

10 1/2 in

Dimensions Dimension C

12 in

Dimensions Dimension D

28 in

Dimensions Prefix Size

0250

Dimensions Size

2 1/2 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1440 psi

Operating Pressures And Temperatures Pressure At 489 Degree Fahr

600 psi

Specifications Strainer Type

Basket
