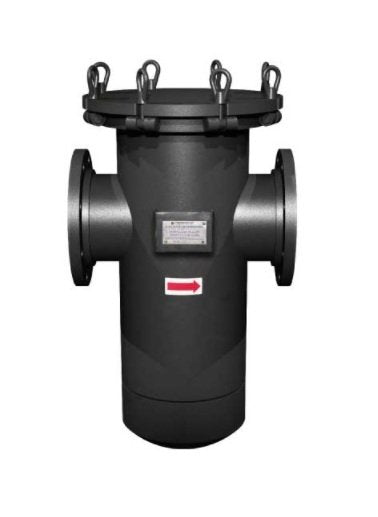

Sure Flow BWEB150 12" Carbon Steel Fabricated Basket Strainer
Sure Flow BWEB150 12" Carbon Steel Fabricated Basket Strainer
SKU:BAS-9b24c1
Ensure smooth operations with the Sure Flow BWEB150 12" Carbon Steel Basket Strainer, featuring quick opening and durable construction for optimal performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow BWEB150 12" Carbon Steel Fabricated Basket Strainer
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow BWEB150 12" Carbon Steel Fabricated Basket Strainer
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BWEB150 12-inch Carbon Steel Fabricated Basket Strainer with Quick Opening Eye Bolt is a reliable solution ideal for the petrochemical industry and beyond. Its quick-opening closure system and venting feature facilitate easy basket removal for cleaning, ensuring efficient operations. With a durable carbon steel body, O-ring seal cover, and high-pressure rating of 100 psi at 150°F, this basket strainer guarantees optimal performance and longevity. It offers customizable options like stainless steel body materials, special alloy baskets, and various end connections, meeting diverse industrial requirements. Certified to ISO 9001:2008 standards, this strainer assures quality and compliance with industry benchmarks.
Product Specifications
Construction Body Material
Carbon Steel
Construction Construction

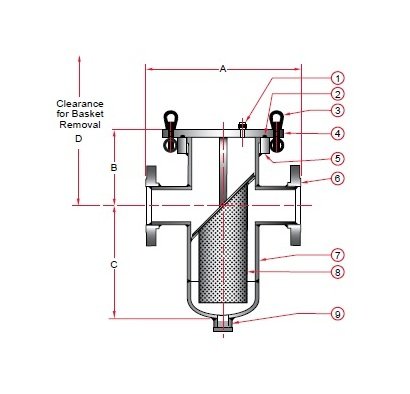

Item - 1Description - Vent AssemblyItem - 2Description - O-RingItem - 3Description - Quick Open Eye BoltsItem - 4Description - Cover PlateItem - 5Description - Ring FlangeItem - 6Description - Outlet NozzleItem - 7Description - Body AssemblyItem - 8Description - BasketItem - 9Description - Drain Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
16 in
Dimensions Dimension A
27 5/8 in
Dimensions Dimension B
16 5/16 in
Dimensions Dimension C
29 in
Dimensions Dimension D
55 in
Dimensions Prefix Size
1200
Dimensions Size
12 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
100 psi
Specifications Strainer Type
Basket
