Sure Flow BWEB150 18-Inch Carbon Steel Fabricated Basket Strainer
Sure Flow BWEB150 18-Inch Carbon Steel Fabricated Basket Strainer
SKU:BAS-52e464
Reliable Sure Flow BWEB150 18-Inch Carbon Steel Strainer for industrial use. Quick-opening design and ISO 9001:2008 compliant.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow BWEB150 18-Inch Carbon Steel Fabricated Basket Strainer
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow BWEB150 18-Inch Carbon Steel Fabricated Basket Strainer
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

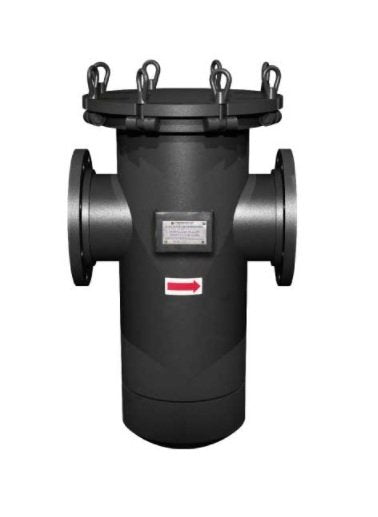

The Sure Flow BWEB150 18-inch Carbon Steel Fabricated Basket Strainer with Quick Opening Eye Bolt is a robust and reliable solution designed for industrial applications. This basket strainer features a unique quick-opening closure for easy maintenance and a venting system for safe basket removal. Constructed with high-quality carbon steel, it ensures durability and efficiency. With compliance to ISO 9001:2008 standards, this basket strainer guarantees top-notch quality and performance for various industries.
Product Specifications
Construction Body Material
Carbon Steel
Construction Construction

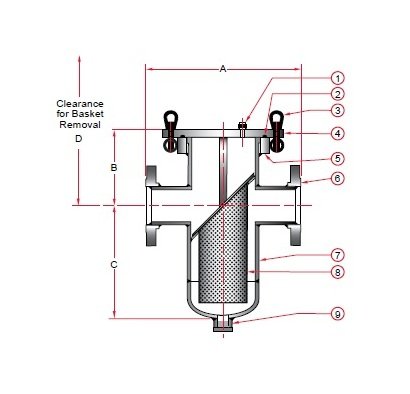

Item - 1Description - Vent AssemblyItem - 2Description - O-RingItem - 3Description - Quick Open Eye BoltsItem - 4Description - Cover PlateItem - 5Description - Ring FlangeItem - 6Description - Outlet NozzleItem - 7Description - Body AssemblyItem - 8Description - BasketItem - 9Description - Drain Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
24 in
Dimensions Dimension A
38 5/8 in
Dimensions Dimension B
20 3/4 in
Dimensions Dimension C
39 in
Dimensions Dimension D
70 in
Dimensions Prefix Size
1800
Dimensions Size
18 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
100 psi
Specifications Strainer Type
Basket
