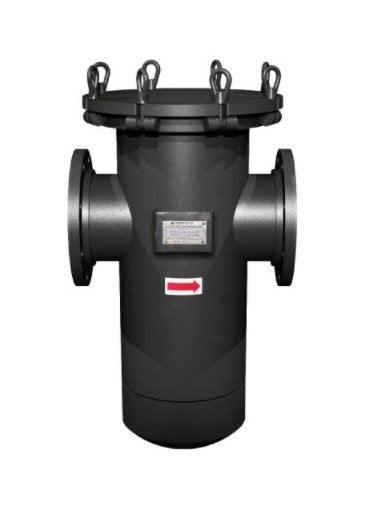

Sure Flow BWEB150 3" Carbon Steel Basket Strainer - Quick Opening Eye Bolt, ISO 9001:2008 Compliant
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow BWEB150 3 Inch Carbon Steel Fabricated Basket Strainer
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow BWEB150 3 Inch Carbon Steel Fabricated Basket Strainer
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BWEB150 3 Inch Carbon Steel Fabricated Basket Strainer with Quick Opening Eye Bolt is a reliable solution designed for the petrochemical industry, now available off the shelf for various applications. Its unique quick-opening closure and venting system enable efficient basket cleaning, ensuring minimal downtime. Constructed with carbon steel, it features an o-ring seal for secure cover sealing. With options for customizations like stainless steel body materials, special alloys, and various end connections, this strainer offers versatility and high performance. Compliant with ISO 9001:2008 standards.
Product Specifications
Construction Body Material
Carbon Steel
Construction Construction

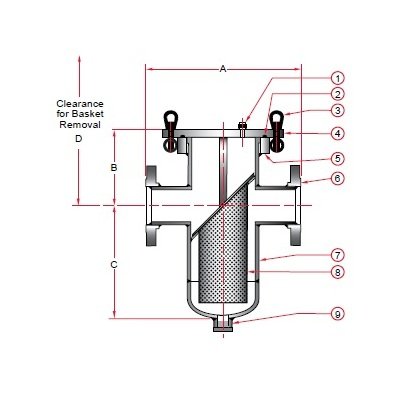

Item - 1Description - Vent AssemblyItem - 2Description - O-RingItem - 3Description - Quick Open Eye BoltsItem - 4Description - Cover PlateItem - 5Description - Ring FlangeItem - 6Description - Outlet NozzleItem - 7Description - Body AssemblyItem - 8Description - BasketItem - 9Description - Drain Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
6 in
Dimensions Dimension A
12 in
Dimensions Dimension B
7 7/8 in
Dimensions Dimension C
13 in
Dimensions Dimension D
26 in
Dimensions Prefix Size
0300
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
100 psi
Specifications Strainer Type
Basket
