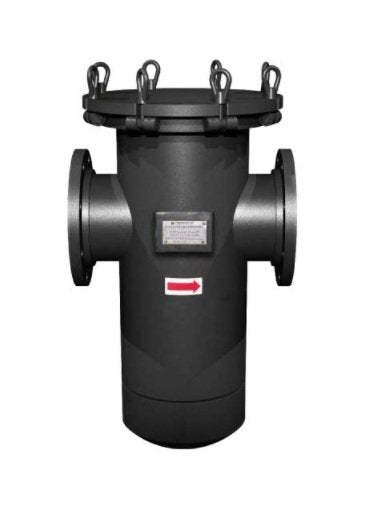

The Sure Flow BWEB150 5 Inch Carbon Steel Fabricated Basket Strainer with Quick Opening Eye Bolt is a reliable solution designed for the petrochemical industry but now widely used in various applications. Featuring a quick-opening closure for easy maintenance, venting capabilities, and an o-ring seal for secure sealing, this basket strainer ensures efficient and safe operation. Its construction includes carbon steel components, with options for stainless steel or special alloys, custom basket materials, and various end connections, making it versatile for different needs. With ASME pressure ratings, compliance with ISO 9001:2008 standards, and the ability to meet industry-specific certifications, this strainer guarantees quality and performance.
Product Specifications
Construction Body Material
Carbon Steel
Construction Construction

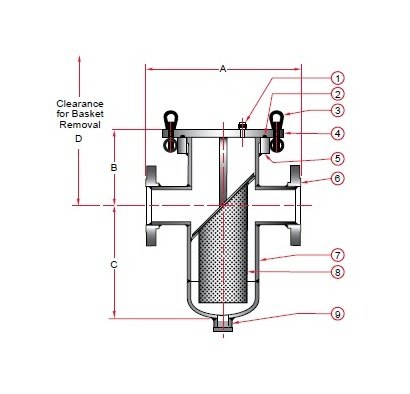

Item - 1Description - Vent AssemblyItem - 2Description - O-RingItem - 3Description - Quick Open Eye BoltsItem - 4Description - Cover PlateItem - 5Description - Ring FlangeItem - 6Description - Outlet NozzleItem - 7Description - Body AssemblyItem - 8Description - BasketItem - 9Description - Drain Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
8 in
Dimensions Dimension A
14 7/8 in
Dimensions Dimension B
9 3/8 in
Dimensions Dimension C
17 in
Dimensions Dimension D
31 1/2 in
Dimensions Prefix Size
0500
Dimensions Size
5 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
100 psi
Specifications Strainer Type
Basket
