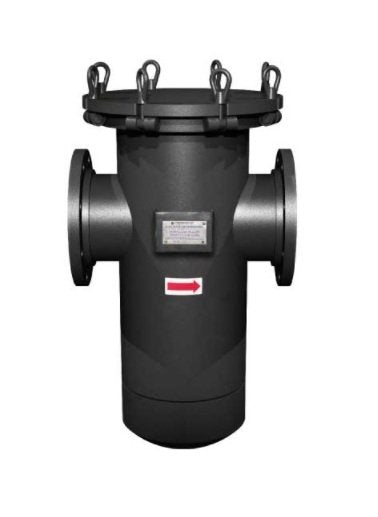

The Sure Flow BWEB150 8-Inch Carbon Steel Fabricated Basket Strainer with Quick Opening Eye Bolt is a reliable solution for petrochemical applications. This strainer features a unique quick-opening closure and venting system for safe and efficient basket cleaning. Constructed with high-quality materials, including carbon steel, this strainer ensures durability and optimal performance. With compliance to ISO 9001:2008 standards, this strainer offers exceptional quality and reliability for industrial procurement needs.
Product Specifications
Construction Body Material
Carbon Steel
Construction Construction

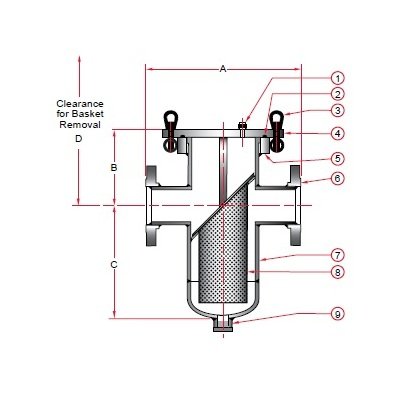

Item - 1Description - Vent AssemblyItem - 2Description - O-RingItem - 3Description - Quick Open Eye BoltsItem - 4Description - Cover PlateItem - 5Description - Ring FlangeItem - 6Description - Outlet NozzleItem - 7Description - Body AssemblyItem - 8Description - BasketItem - 9Description - Drain Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
12 in
Dimensions Dimension A
20 1/8 in
Dimensions Dimension B
11 7/8 in
Dimensions Dimension C
23 in
Dimensions Dimension D
40 3/4 in
Dimensions Prefix Size
0800
Dimensions Size
8 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
100 psi
Specifications Strainer Type
Basket
