Sure Flow BWEB150SS 2 Inch Stainless Steel Fabricated Basket Strainer
Sure Flow BWEB150SS 2 Inch Stainless Steel Fabricated Basket Strainer
SKU:BAS-2a193f
Discover the high-performance Sure Flow BWEB150SS Stainless Steel Basket Strainer for efficient maintenance and durability.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Sure Flow BWEB150SS 2 Inch Stainless Steel Fabricated Basket Strainer
$249.99
Quantity: 1
Claim Your Seller Account
Sure Flow BWEB150SS 2 Inch Stainless Steel Fabricated Basket Strainer
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BWEB150SS Stainless Steel Fabricated Basket Strainer is a versatile solution designed for the petrochemical industry and now widely used across various sectors. Featuring a quick-opening closure for efficient maintenance, this strainer ensures timely and safe basket cleaning. With a stainless steel body, vent assembly, O-ring seal, quick open eye bolts, and other premium components, it guarantees durability and corrosion resistance. Operating at 100 psi and meeting ISO 9001:2008 standards, this strainer offers custom options including special alloys, multiple baskets, and varied end connections.
Product Specifications
Construction Body Material
Stainless Steel
Construction Construction

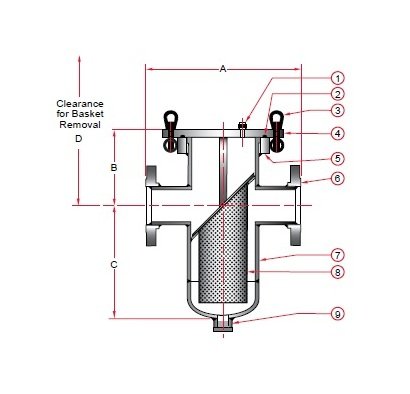

Item - 1Description - Vent AssemblyItem - 2Description - O-RingItem - 3Description - Quick Open Eye BoltsItem - 4Description - Cover PlateItem - 5Description - Ring FlangeItem - 6Description - Outlet NozzleItem - 7Description - Body AssemblyItem - 8Description - BasketItem - 9Description - Drain Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
6 in
Dimensions Dimension A
12 in
Dimensions Dimension B
7 in
Dimensions Dimension C
11 in
Dimensions Dimension D
22 in
Dimensions Prefix Size
0200
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
100 psi
Specifications Strainer Type
Basket
