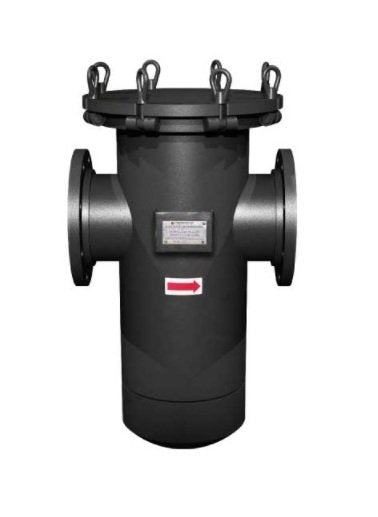

The Sure Flow BWEB150SS 24 Inch Stainless Steel Fabricated Basket Strainer with Quick Opening Eye Bolt is designed for efficient liquid filtration in demanding industrial environments. This heavy-duty strainer features a quick-opening closure system for easy basket maintenance, ensuring uninterrupted operations. Constructed with durable stainless steel and featuring precise engineering, it meets stringent industry standards such as ISO 9001:2008 (Intertek), making it a reliable choice for petrochemical, water, oil, and gas applications.
Product Specifications
Construction Body Material
Stainless Steel
Construction Construction

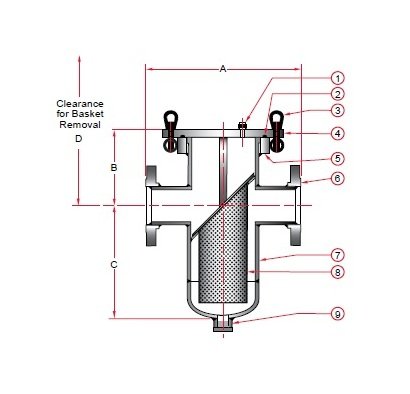

Item - 1Description - Vent AssemblyItem - 2Description - O-RingItem - 3Description - Quick Open Eye BoltsItem - 4Description - Cover PlateItem - 5Description - Ring FlangeItem - 6Description - Outlet NozzleItem - 7Description - Body AssemblyItem - 8Description - BasketItem - 9Description - Drain Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
30 in
Dimensions Dimension A
46 in
Dimensions Dimension B
24 5/8 in
Dimensions Dimension C
45 in
Dimensions Dimension D
83 in
Dimensions Prefix Size
2400
Dimensions Size
24 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
100 psi
Specifications Strainer Type
Basket
