The Sure Flow BWH150SS 4" Stainless Steel Fabricated Basket Strainer with Quick Opening Hinged Cover is a top-of-the-line solution for efficient filtration. Constructed with durable stainless steel, this basket strainer is designed to meet stringent industry standards. With customizable options like quick-opening covers, various body materials, and custom baskets, it caters to diverse institutional needs while ensuring reliability and performance. This strainer is ideal for applications requiring high-pressure ratings and precise filtration with its special construction features like special coatings and multiple basket options.
Product Specifications
Construction Body Material
Stainless Steel
Construction Construction

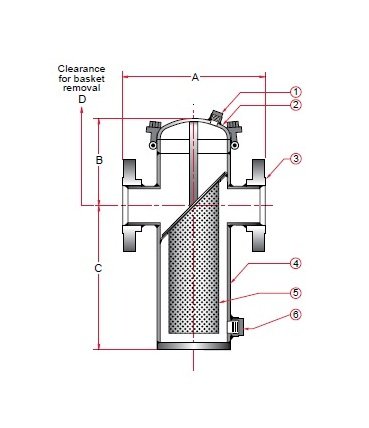

Item - 1Description - Vent AssemblyItem - 2Description - Quick Open CoverItem - 3Description - Inlet/Outlet FlangeItem - 4Description - Body AssemblyItem - 5Description - BasketItem - 6Description - Drain Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
8 in
Dimensions Dimension A
16 in
Dimensions Dimension B
9 1/2 in
Dimensions Dimension C
14 5/16 in
Dimensions Dimension D
28 in
Dimensions Prefix Size
400
Dimensions Size
4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Operating Pressures And Temperatures Pressure At 422 Degree Fahr
300 psi
Specifications Strainer Type
Basket
