Sure Flow BWH300 2 Inch Carbon Steel Basket Strainer
Sure Flow BWH300 2 Inch Carbon Steel Basket Strainer
SKU:BAS-b440f7

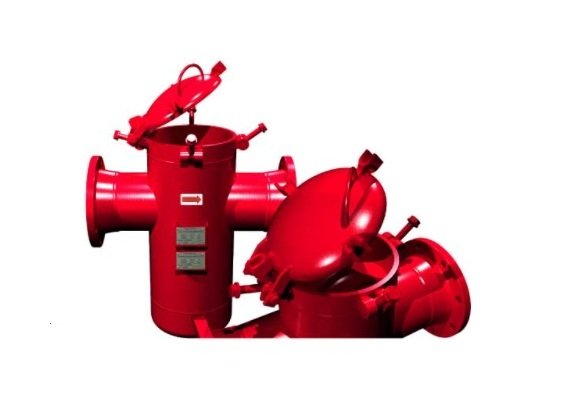

Durable 2" Carbon Steel Basket Strainer with Quick Opening Hinged Cover
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Sure Flow BWH300 2 Inch Carbon Steel Basket Strainer
$399.99
Quantity: 1
Claim Your Seller Account
Sure Flow BWH300 2 Inch Carbon Steel Basket Strainer
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BWH300 2 Inch Carbon Steel Fabricated Basket Strainer features a quick opening hinged cover for easy maintenance. Constructed with durable carbon steel, it withstands pressures up to 740 psi for water, oil, and gas applications. This strainer offers customizable options including body materials in stainless steel, special alloys, and custom baskets, meeting ISO 9001:2008 standards.
Product Specifications
Construction Body Material
Carbon Steel
Construction Construction

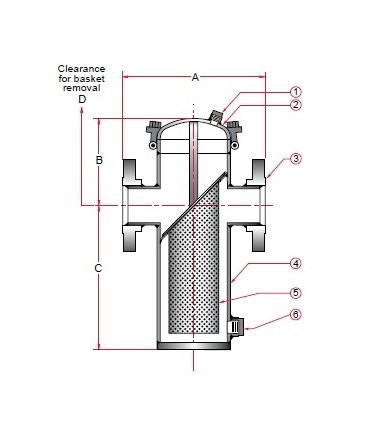

Item - 1Description - Vent AssemblyItem - 2Description - Quick Open CoverItem - 3Description - Inlet/Outlet FlangeItem - 4Description - Body AssemblyItem - 5Description - BasketItem - 6Description - Drain Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
6 in
Dimensions Dimension A
14 in
Dimensions Dimension B
8 5/8 in
Dimensions Dimension C
12 1/4 in
Dimensions Dimension D
26 in
Dimensions Prefix Size
200
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
740 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Operating Pressures And Temperatures Pressure At 422 Degree Fahr
300 psi
Specifications Strainer Type
Basket
