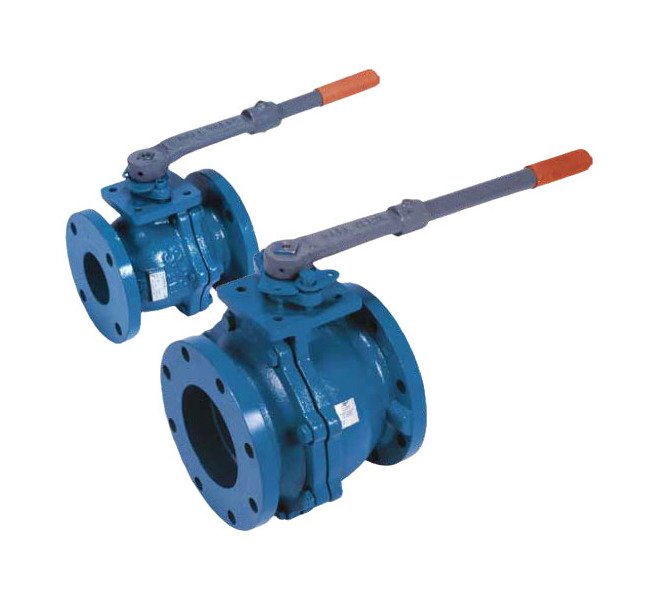

Sure Flow Cast Iron Full Port Ball Valve BV125IS, 3 Inch
Sure Flow Cast Iron Full Port Ball Valve BV125IS, 3 Inch
SKU:BAL-9d47d5
Dependable Sure Flow 3" Cast Iron Ball Valve, Full Port Design, ANSI Standards Compliant
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow Cast Iron Full Port Ball Valve BV125IS, 3 Inch
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow Cast Iron Full Port Ball Valve BV125IS, 3 Inch
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BV125IS 3 Inch Cast Iron Full Port Ball Valve offers a durable and efficient solution for fluid control. With a stainless steel ball and stem, Teflon seats, and a blow-out proof stem, it ensures positive shut-off and reliability. This valve meets ANSI B16.10 standards, with a full port design, torque optimized for clean water applications, and a fused epoxy coating. Ideal for replacing gate valves, it features a tapped actuator mounting pad, lockable open/closed positions, and complies with ISO 9001:2008 standards.
Product Specifications
Additional Information Additional Information
The valve shall comply with American standards for end to end or face to face dimensions (ANSI B16.10) for Class 125 Cast Iron Flanged Gate Valves. Valves shall have a Full Port Stainless Ball with PTFE Seats. The dimensions and drilling of the end flanges conform to Cast Iron Flanged Standard ANSI B16.1.
Construction Construction
Name - LeverDescription - Ductile IronName - ScrewDescription - Carbon SteelName - BoltDescription - Carbon SteelName - GlandDescription - Cast IronName - PackingDescription - Polytetrafluoroethylene (PTFE)Name - StemDescription - Stainless SteelName - Thrust WasherDescription - Polytetrafluoroethylene (PTFE)Name - Seat RingDescription - Polytetrafluoroethylene (PTFE)Name - SpringDescription - Carbon SteelName - BallDescription - Stainless SteelName - BodyDescription - Cast IronName - Body GasketDescription - Polytetrafluoroethylene (PTFE)Name - Body BoltDescription - Carbon Steel

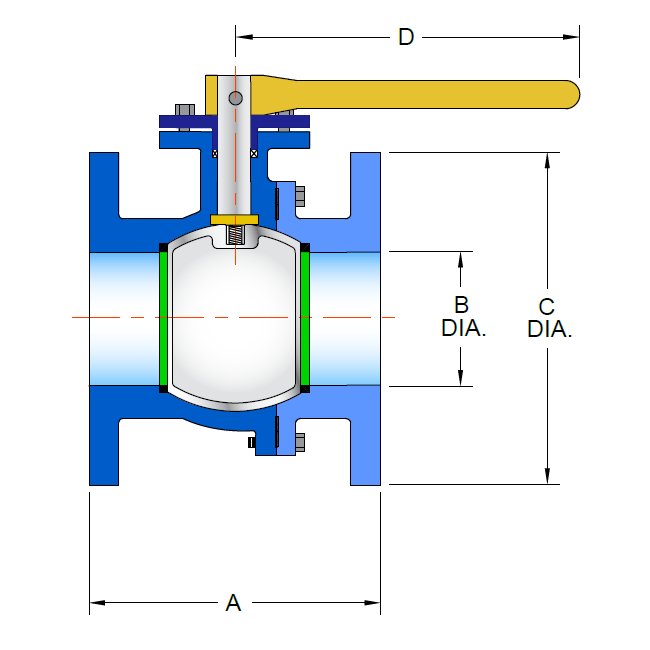

Dimensions Dimension A
8 in
Dimensions Dimension B
3 in
Dimensions Dimension C
7 1/2 in
Dimensions Dimension D
15 in
Dimensions Prefix Size
300
Dimensions Shipping Weight
59 lb
Dimensions Size
3 in
Features Features
Stainless Steel Ball and StemPositive Shut Off / Teflon SeatsBlow-Out Proof StemOpen or Closed or Simple throttlingReplaces Gate Valves - same End to End Dimension to ANSI B16.10Tapped Actuator Mounting Pad for ActuationFused Epoxy CoatingFull Open or Closed position lockable.
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Maximum Operating Torque Maximum Operating Torque
Torque based on a clean water application.
Maximum Operating Torque Torque
780 lb
Maximum Operating Torque Valve Flow Coefficient Cv
1200 gpm
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.The Flow Coefficient (Cv) is the number of gallons per minute of water flowing through a given size restriction at a pressure drop of one psi.Standard with handwheel and gear actuator.
