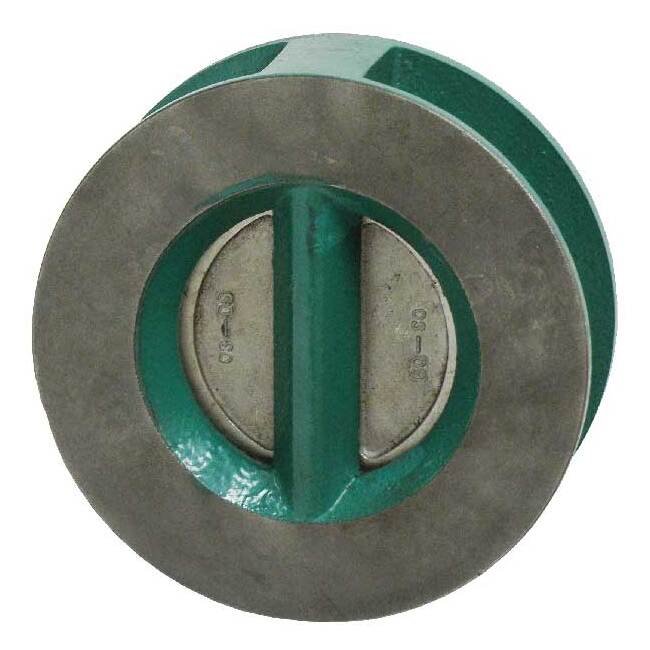

Sure Flow CD125IS 2 Inch Cast Iron Double Door Wafer Check Valve
Sure Flow CD125IS 2 Inch Cast Iron Double Door Wafer Check Valve
Ensure reliable flow control with the Sure Flow CD125IS 2 Inch Cast Iron Double Door Wafer Check Valve. Dual plates for maximum strength and quick response.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Sure Flow CD125IS 2 Inch Cast Iron Double Door Wafer Check Valve
$189.99
Quantity: 1
Claim Your Seller Account
Sure Flow CD125IS 2 Inch Cast Iron Double Door Wafer Check Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CD125IS 2 Inch Cast Iron Double Door Wafer Check Valve is engineered to deliver exceptional flow control and reliability in a compact, retainerless design. With dual plates for maximum strength and quick response, this valve ensures positive shut-off even at low pressures. Made with high-quality materials, including cast iron body and stainless steel components, it meets ISO 9001:2008 standards for quality and performance.
Product Specifications
Additional Information Additional Information
Torsion springs assist in positive shut-off and disc closure, preventing backflow. The two heavy duty, corrosion resistant shafts act as stops to prevent over-travel of the discs. Thrust washers reduce friction and wear of the valve disc hinges.
Construction Body Material
Cast Iron
Construction Construction

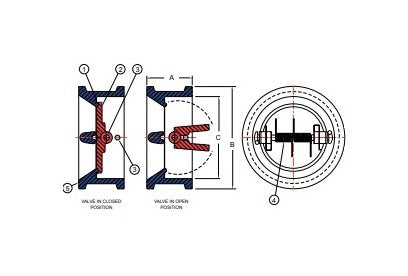

Item - 1Description - Seat/SealMaterial - Buna-NItem - 2Description - DiscsMaterial - A351 Gr. CF8M Stainless SteelItem - 3Description - ShaftMaterial - A351 Gr. CF8M Stainless SteelItem - 4Description - Torsion SpringMaterial - A351 Gr. CF8M Stainless SteelItem - 5Description - Cast BodyMaterial - A126 Class B Cast Iron
Dimensions Dimension A
2 1/8 in
Dimensions Dimension B
4 1/8 in
Dimensions Dimension C
2 3/8 in
Dimensions Flow Coefficient Cv
48 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
6 lb
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Check Valve Type
Wafer Double Door
