The Sure Flow CF125ISC 10 Inch Cast Iron Silent Globe Check Valve is engineered for precise flow control, preventing water hammer and system surges. Designed for vertical or horizontal installation, it features a guided disc for smooth operation. With ASME Class 125 and ISO 9001:2008 certifications, this valve ensures quality and performance. Constructed with durable materials like stainless steel and Buna-N, it offers reliable service in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Construction Construction

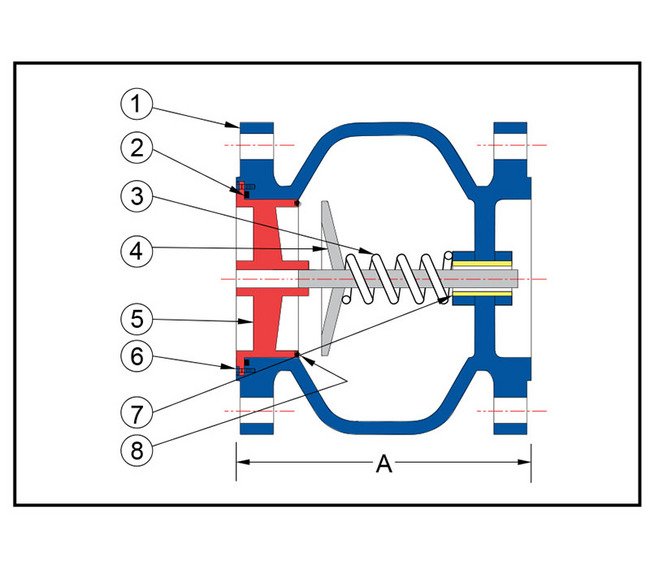

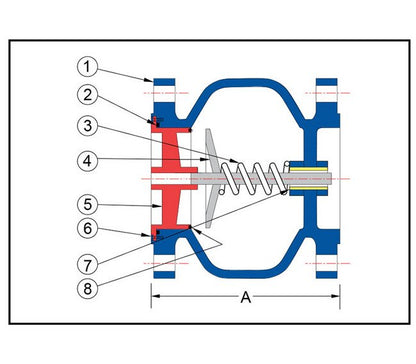

Item - 1Description - Cast BodyMaterial - A126 Class BItem - 2Description - O-RingMaterial - Buna-NItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - Stainless SteelItem - 5Description - SeatMaterial - Stainless SteelItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
16 1/4 in
Dimensions Prefix Size
1000
Dimensions Shipping Weight
360 lb
Dimensions Size
10 in
Dimensions Valve Flow Coefficient Cv
1,700
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
