Sure Flow CF125ISC 12 Inch Cast Iron Silent Globe Check Valve
Sure Flow CF125ISC 12 Inch Cast Iron Silent Globe Check Valve
SKU:DOU-f8cbb9
Prevent water hammer with Sure Flow CF125ISC 12" Silent Globe Check Valve. ASME Class 125 & ISO 9001 compliant.
Regular price
$589.99
Regular price
Sale price
$589.99
Unit price
per
Initiate Order
Sure Flow CF125ISC 12 Inch Cast Iron Silent Globe Check Valve
$589.99
Quantity: 1
Claim Your Seller Account
Sure Flow CF125ISC 12 Inch Cast Iron Silent Globe Check Valve
$589.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

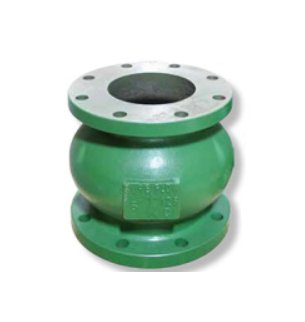

The Sure Flow CF125ISC 12 Inch Cast Iron Silent Globe Check Valve is a reliable solution engineered to close preemptively, preventing flow reversal and the resulting water hammer. This valve ensures smooth system operations with its quiet performance and versatile installation options. Meeting ASME Class 125 and ISO 9001:2008 standards, this valve features a sturdy cast iron construction with stainless steel components, offering durability and resilience. With a Valve Flow Coefficient (Cv) of 2,575 and a maximum operating pressure of 200 psi at 150°F, this valve guarantees efficient and safe fluid control.
Product Specifications

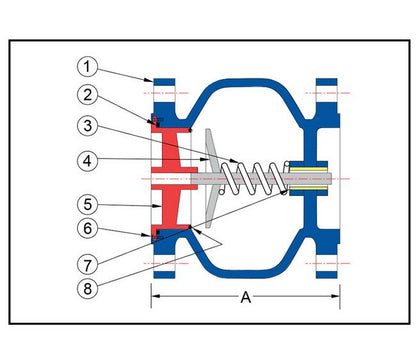

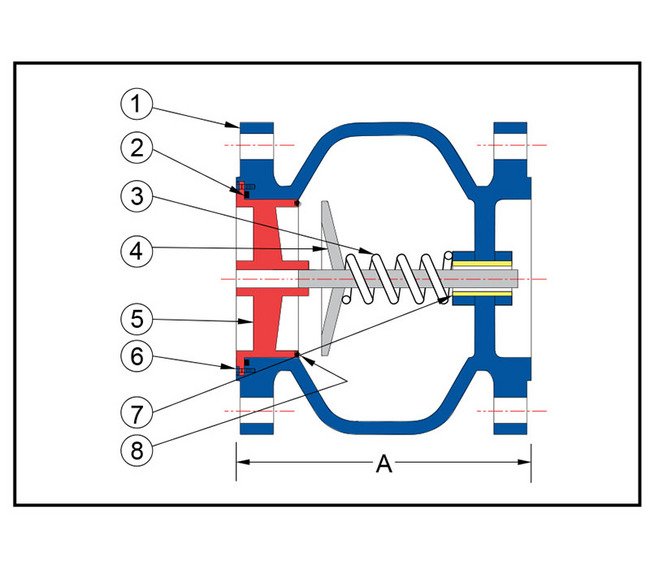

Construction Construction
Item - 1Description - Cast BodyMaterial - A126 Class BItem - 2Description - O-RingMaterial - Buna-NItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - Stainless SteelItem - 5Description - SeatMaterial - Stainless SteelItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
20 1/4 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
600 lb
Dimensions Size
12 in
Dimensions Valve Flow Coefficient Cv
2,575
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
