Sure Flow CF125ISC 16 Inch Cast Iron Silent Globe Check Valve
Sure Flow CF125ISC 16 Inch Cast Iron Silent Globe Check Valve
SKU:DOU-091bb9
Prevent water hammer and system surges with Sure Flow CF125ISC 16 Inch Silent Globe Check Valve. ASME Class 125 & ISO 9001:2008 compliant.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
Sure Flow CF125ISC 16 Inch Cast Iron Silent Globe Check Valve
$749.99
Quantity: 1
Claim Your Seller Account
Sure Flow CF125ISC 16 Inch Cast Iron Silent Globe Check Valve
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CF125ISC 16 Inch Cast Iron Silent Globe Check Valve offers reliable performance in preventing flow reversal, eliminating water hammer, and minimizing system surges. This valve is designed for quiet operation, with a guided disc suitable for vertical or horizontal installation. Meeting ASME Class 125 and ISO 9001:2008 standards, this valve features a durable cast iron construction with stainless steel components, ensuring longevity and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

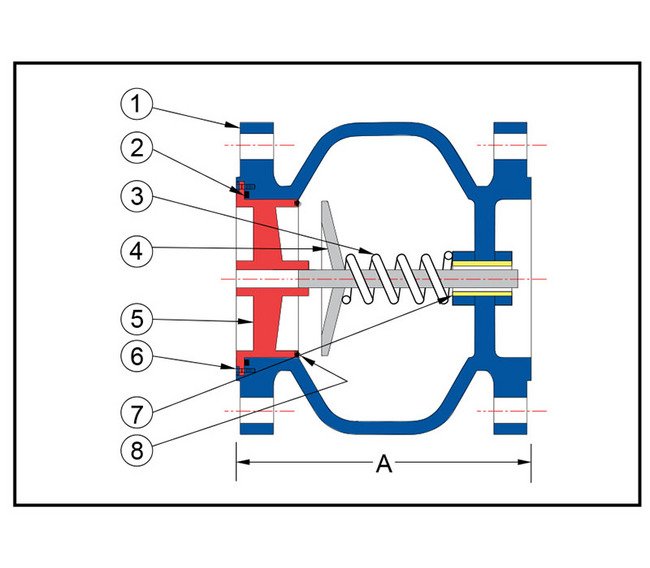

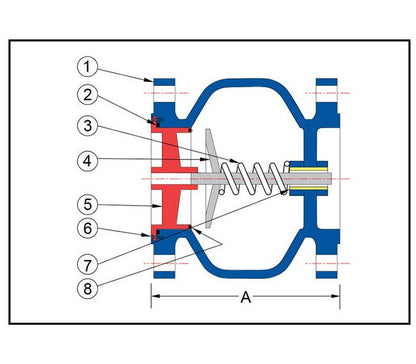

Construction Construction
Item - 1Description - Cast BodyMaterial - A126 Class BItem - 2Description - O-RingMaterial - Buna-NItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - Stainless SteelItem - 5Description - SeatMaterial - Stainless SteelItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
24 3/4 in
Dimensions Prefix Size
1600
Dimensions Shipping Weight
810 lb
Dimensions Size
16 in
Dimensions Valve Flow Coefficient Cv
4,300
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Cast Iron
