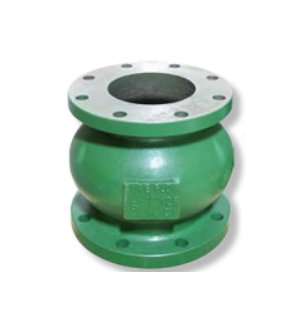

Sure Flow CF125ISC 24 Inch Cast Iron Silent Globe Check Valve
Sure Flow CF125ISC 24 Inch Cast Iron Silent Globe Check Valve
SKU:DOU-002b6d
Prevent flow reversal with the Sure Flow CF125ISC 24 Inch Cast Iron Silent Globe Check Valve. Quiet operation, guided disc, and ASME Class 125 compliance.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow CF125ISC 24 Inch Cast Iron Silent Globe Check Valve
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow CF125ISC 24 Inch Cast Iron Silent Globe Check Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CF125ISC 24 Inch Cast Iron Silent Globe Check Valve is expertly designed to prevent flow reversal, eliminating water hammer and system surges. Featuring quiet operation, guided disc, and flexible installation orientation options, this valve ensures reliable performance. Crafted from high-quality materials, it complies with American Society of Mechanical Engineers (ASME) Class 125 and ISO 9001:2008 standards. Ideal for both vertical and horizontal installations, it offers exceptional durability and efficiency.
Product Specifications

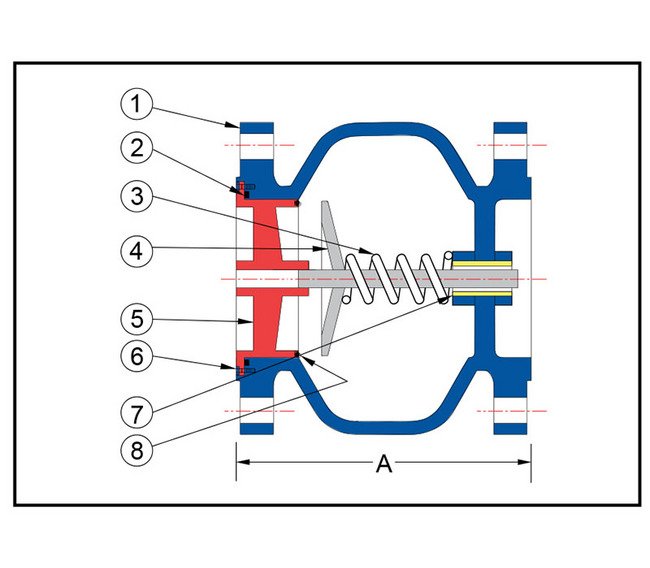

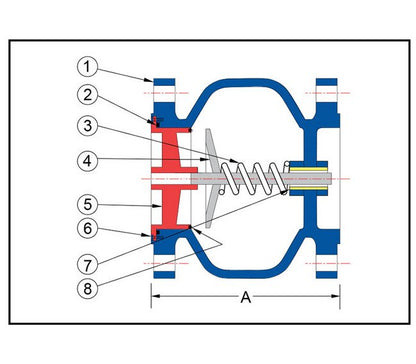

Construction Construction
Item - 1Description - Cast BodyMaterial - A126 Class BItem - 2Description - O-RingMaterial - Buna-NItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - Stainless SteelItem - 5Description - SeatMaterial - Stainless SteelItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
24 in
Dimensions Prefix Size
2400
Dimensions Shipping Weight
2,600 lb
Dimensions Size
24 in
Dimensions Valve Flow Coefficient Cv
10,562
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Cast Iron
