Sure Flow CF125ISC 3-Inch Cast Iron Silent Globe Check Valve
Sure Flow CF125ISC 3-Inch Cast Iron Silent Globe Check Valve
SKU:DOU-daef5a
Prevent flow reversal and water hammer with the Sure Flow CF125ISC 3" Cast Iron Globe Check Valve. ASME Class 125 certified, ideal for vertical or horizontal installation.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Sure Flow CF125ISC 3-Inch Cast Iron Silent Globe Check Valve
$189.99
Quantity: 1
Claim Your Seller Account
Sure Flow CF125ISC 3-Inch Cast Iron Silent Globe Check Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CF125ISC 3-inch Cast Iron Silent Globe Check Valve is a premium choice for preventing flow reversal and eliminating water hammer in piping systems. Designed to close swiftly, it ensures quiet operation and minimal system surges. With a sturdy cast iron construction and ASME Class 125 certification, this valve is suitable for vertical or horizontal installation. Operating at a pressure of up to 200 psi at 150°F, it offers reliability and efficiency. The CF125ISC is equipped with high-quality stainless steel components and meets ISO 9001:2008 standards for added assurance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Construction Construction

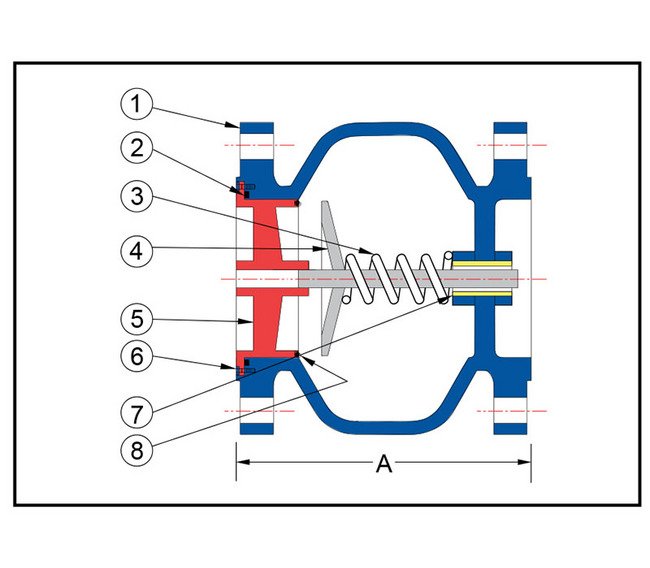

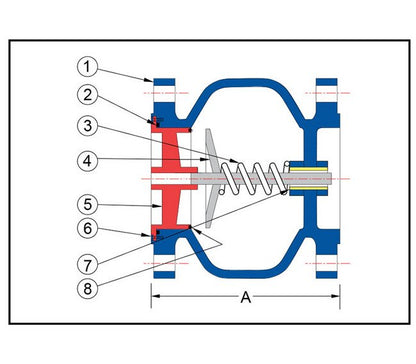

Item - 1Description - Cast BodyMaterial - A126 Class BItem - 2Description - O-RingMaterial - Buna-NItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - Stainless SteelItem - 5Description - SeatMaterial - Stainless SteelItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
7 1/2 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
50 lb
Dimensions Size
3 in
Dimensions Valve Flow Coefficient Cv
147
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
