Sure Flow CF125ISC 5" Cast Iron Silent Globe Check Valve
Sure Flow CF125ISC 5" Cast Iron Silent Globe Check Valve
SKU:DOU-88a474
Prevent water hammer & flow reversal with Sure Flow CF125ISC 5" Cast Iron Silent Globe Check Valve. ASME Class 125 certified for reliability.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Sure Flow CF125ISC 5" Cast Iron Silent Globe Check Valve
$399.99
Quantity: 1
Claim Your Seller Account
Sure Flow CF125ISC 5" Cast Iron Silent Globe Check Valve
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CF125ISC 5 Inch Cast Iron Silent Globe Check Valve is engineered to prevent flow reversal, eliminating water hammer and surges. With quiet operation, guided disc design, and ASME Class 125 certification, it ensures reliable performance. This valve, suitable for both vertical and horizontal positions, offers precision construction with materials like stainless steel, ensuring durability and efficiency in water, oil, and gas applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Construction Construction

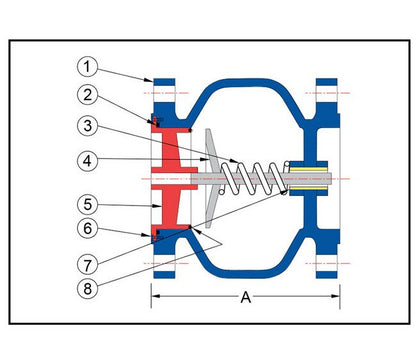

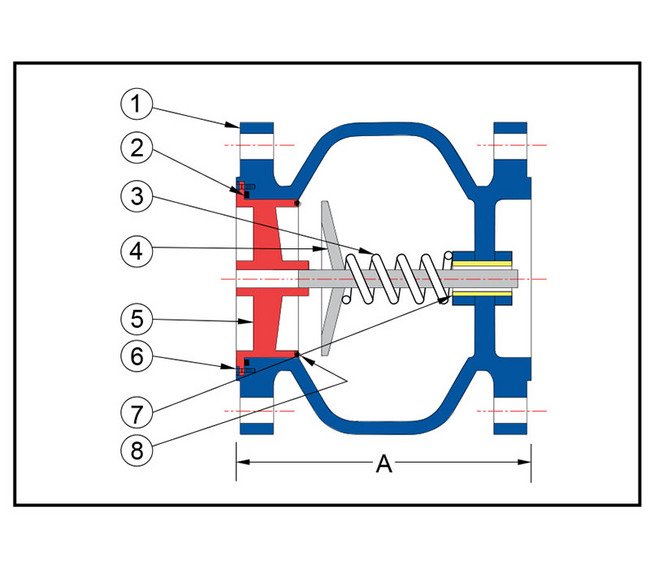

Item - 1Description - Cast BodyMaterial - A126 Class BItem - 2Description - O-RingMaterial - Buna-NItem - 3Description - SpringMaterial - Stainless SteelItem - 4Description - DiscMaterial - Stainless SteelItem - 5Description - SeatMaterial - Stainless SteelItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
9 1/2 in
Dimensions Prefix Size
0500
Dimensions Shipping Weight
100 lb
Dimensions Size
5 in
Dimensions Valve Flow Coefficient Cv
430
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
