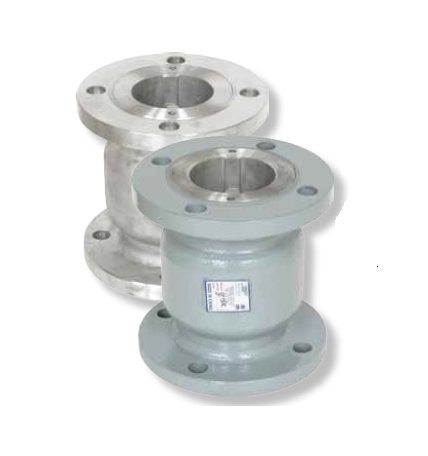

Sure Flow CF150C 10 Inch Cast Steel Silent Globe Check Valve

Name: Sure Flow CF150C 10 Inch Cast Steel Silent Globe Check Valve
Brand: Sure Flow Equipment, Inc.
SKU: DOU-b53054
Price: 559.99 USD
Availability: OutOfStock

SKU:DOU-b53054

Prevent water hammer with Sure Flow CF150C 10in Cast Steel Silent Globe Check Valve. Quiet operation, ASME Class 150 & ISO 9001:2008 compliant.

$559.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow CF150C 10 Inch Cast Steel Silent Globe Check Valve is designed to prevent flow reversal, eliminating water hammer and system surges. Featuring quiet operation, guided disc, and versatile installation orientations, it meets ASME Class 150 and ISO 9001:2008 standards. Constructed with durable materials, it offers reliable performance and is suitable for institutional applications.

Product Specifications

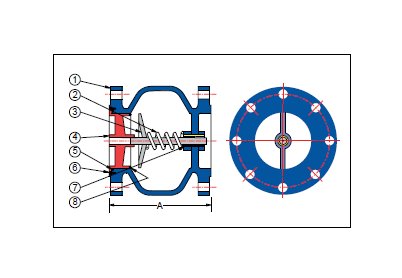

Construction Construction

Item - 1Description - Cast Body - CarbonMaterial - A216 Gr. WCBItem - 2Description - SpringMaterial - Stainless SteelItem - 3Description - DiscMaterial - Stainless SteelItem - 4Description - SeatMaterial - Stainless SteelItem - 5Description - O-RingMaterial - Buna-NItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N

Dimensions Dimension A

14 in

Dimensions Prefix Size

1000

Dimensions Shipping Weight

197 lb

Dimensions Size

10 in

Dimensions Valve Flow Coefficient Cv

1,700

Industry Standardscertifications Industry Standardscertification

American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

285 psi

Specifications Material

Cast Steel

Specifications Orientation

Horizontal | Vertical

Sure Flow CF150C 10 Inch Cast Steel Silent Globe Check Valve
