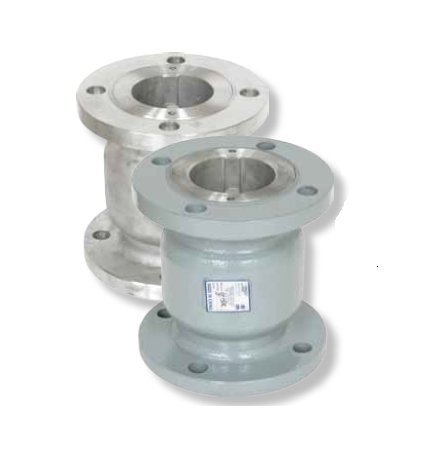

Sure Flow CF150C 2 1/2 Inch Cast Steel Silent Globe Check Valve

Name: Sure Flow CF150C 2 1/2 Inch Cast Steel Silent Globe Check Valve
Brand: Sure Flow Equipment, Inc.
SKU: DOU-8d1c61
Price: 289.99 USD
Availability: OutOfStock

SKU:DOU-8d1c61

Prevent water hammer with Sure Flow CF150C 2 1/2 Inch Cast Steel Silent Globe Check Valve. ASME Class 150 & ISO 9001:2008 certified. Quiet operation, guided disc, versatile installation.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow CF150C 2 1/2 Inch Cast Steel Silent Globe Check Valve is engineered to prevent flow reversal, eliminating water hammer and system surges. Designed for quiet operation with a guided disc, it can be installed vertically or horizontally. Meeting ASME Class 150 and ISO 9001:2008 standards, this valve offers reliable performance and durability. Constructed with high-quality materials like carbon cast steel and stainless steel components, it ensures efficient functionality under pressure. Available in sizes ranging from 2" to 12". Consult factory for optional construction materials and installation instructions.

Product Specifications

Construction Construction

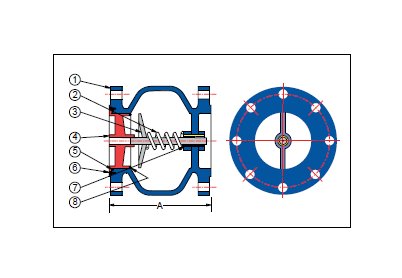

Item - 1Description - Cast Body - CarbonMaterial - A216 Gr. WCBItem - 2Description - SpringMaterial - Stainless SteelItem - 3Description - DiscMaterial - Stainless SteelItem - 4Description - SeatMaterial - Stainless SteelItem - 5Description - O-RingMaterial - Buna-NItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N

Dimensions Dimension A

7 in

Dimensions Prefix Size

0250

Dimensions Shipping Weight

20 lb

Dimensions Size

2 1/2 in

Dimensions Valve Flow Coefficient Cv

105

Industry Standardscertifications Industry Standardscertification

American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

285 psi

Specifications Material

Cast Steel

Specifications Orientation

Horizontal | Vertical
