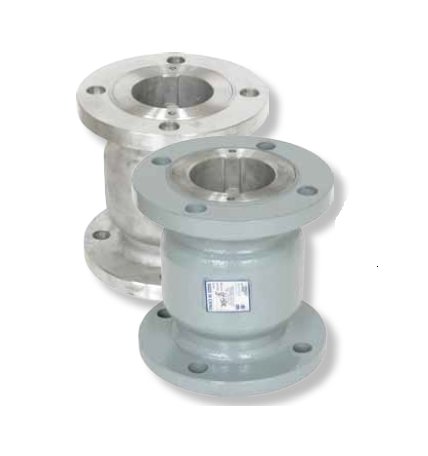

Sure Flow CF150C 2" Cast Steel Silent Globe Check Valve

Name: Sure Flow CF150C 2" Cast Steel Silent Globe Check Valve
Brand: Sure Flow Equipment, Inc.
SKU: DOU-3c5728
Price: 299.99 USD
Availability: OutOfStock

SKU:DOU-3c5728

Prevent flow reversal with Sure Flow CF150C 2" Cast Steel Silent Globe Check Valve. Quiet, reliable, ASME & ISO certified.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow CF150C 2" Cast Steel Silent Globe Check Valve is engineered to prevent flow reversal, eliminating water hammer and system surges. Designed for quiet operation, it features a guided disc for reliable performance in both vertical and horizontal installations. With industry certifications like ASME Class 150 and ISO 9001:2008, this valve meets stringent quality standards. Constructed with durable materials including A216 Gr. WCB carbon body and stainless steel components, it ensures long-lasting service. Optimal for various applications requiring a 2" size valve.

Product Specifications

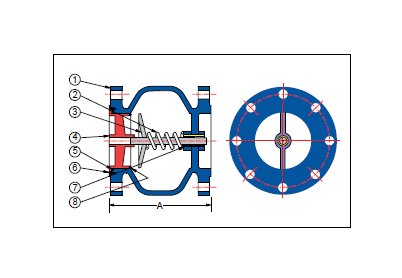

Construction Construction

Item - 1Description - Cast Body - CarbonMaterial - A216 Gr. WCBItem - 2Description - SpringMaterial - Stainless SteelItem - 3Description - DiscMaterial - Stainless SteelItem - 4Description - SeatMaterial - Stainless SteelItem - 5Description - O-RingMaterial - Buna-NItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N

Dimensions Dimension A

6 1/4 in

Dimensions Prefix Size

0200

Dimensions Shipping Weight

14 lb

Dimensions Size

2 in

Dimensions Valve Flow Coefficient Cv

Industry Standardscertifications Industry Standardscertification

American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

285 psi

Specifications Material

Cast Steel

Specifications Orientation

Horizontal | Vertical

Sure Flow CF150C 2" Cast Steel Silent Globe Check Valve
