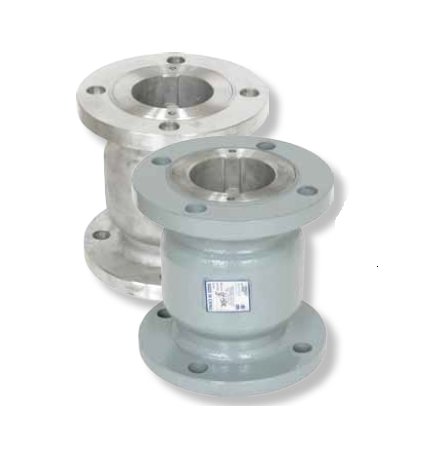

Sure Flow CF150C 3 Inch Cast Steel Silent Globe Check Valve
Sure Flow CF150C 3 Inch Cast Steel Silent Globe Check Valve
SKU:DOU-4c10e4
Prevent flow reversal with the Sure Flow Cast Steel Silent Globe Check Valve. Quiet operation, ASME Class 150 compliant.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow CF150C 3 Inch Cast Steel Silent Globe Check Valve
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow CF150C 3 Inch Cast Steel Silent Globe Check Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CF150C 3 Inch Cast Steel Silent Globe Check Valve is expertly designed to prevent flow reversal, minimizing water hammer and system surges. Featuring quiet operation, guided disc technology, and versatile installation options in both vertical and horizontal positions, this valve is a reliable choice for industrial applications. Compliant with ASME Class 150 and ISO 9001:2008 standards, this valve ensures performance and durability. The construction includes high-quality materials such as stainless steel for long-lasting functionality.
Product Specifications

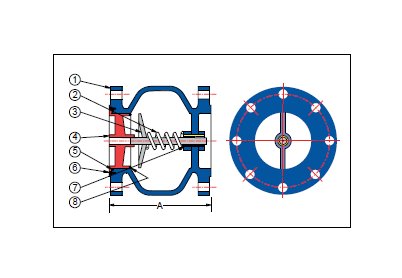

Construction Construction
Item - 1Description - Cast Body - CarbonMaterial - A216 Gr. WCBItem - 2Description - SpringMaterial - Stainless SteelItem - 3Description - DiscMaterial - Stainless SteelItem - 4Description - SeatMaterial - Stainless SteelItem - 5Description - O-RingMaterial - Buna-NItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
7 5/8 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
25 lb
Dimensions Size
3 in
Dimensions Valve Flow Coefficient Cv
147
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Specifications Material
Cast Steel
Specifications Orientation
Horizontal | Vertical
