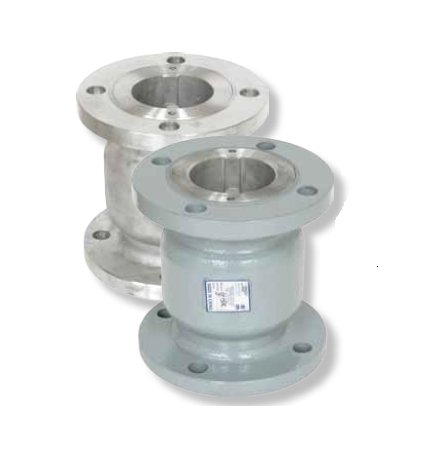

Sure Flow CF150C 4 Inch Cast Steel Silent Globe Check Valve
Sure Flow CF150C 4 Inch Cast Steel Silent Globe Check Valve
SKU:DOU-f47b53
Ensure smooth flow control with the Sure Flow CF150C 4 Inch Cast Steel Silent Globe Check Valve. Prevent water hammer and system surges for efficient operation. ASME Class 150 and ISO 9001:2008 certified.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Sure Flow CF150C 4 Inch Cast Steel Silent Globe Check Valve
$249.99
Quantity: 1
Claim Your Seller Account
Sure Flow CF150C 4 Inch Cast Steel Silent Globe Check Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CF150C 4 Inch Cast Steel Silent Globe Check Valve is a reliable solution designed to prevent flow reversal, eliminating water hammer and system surges upon valve closure. Featuring quiet operation, a guided disc, and versatile installation options, this valve ensures optimal performance in both horizontal and vertical orientations. Meeting ASME Class 150 and ISO 9001:2008 standards, this valve is constructed with durable materials including A216 Gr. WCB carbon cast body, stainless steel components, and optional Buna-N seating. Consult factory for customization options and installation guidance.

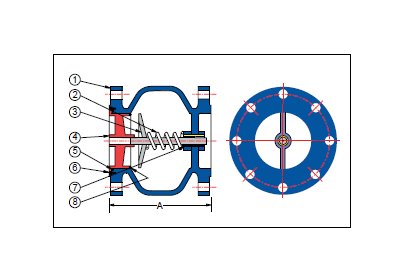

Product Specifications
Construction Construction
Item - 1Description - Cast Body - CarbonMaterial - A216 Gr. WCBItem - 2Description - SpringMaterial - Stainless SteelItem - 3Description - DiscMaterial - Stainless SteelItem - 4Description - SeatMaterial - Stainless SteelItem - 5Description - O-RingMaterial - Buna-NItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
8 1/2 in
Dimensions Prefix Size
0400
Dimensions Shipping Weight
41 lb
Dimensions Size
4 in
Dimensions Valve Flow Coefficient Cv
265
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Specifications Material
Cast Steel
Specifications Orientation
Horizontal | Vertical
