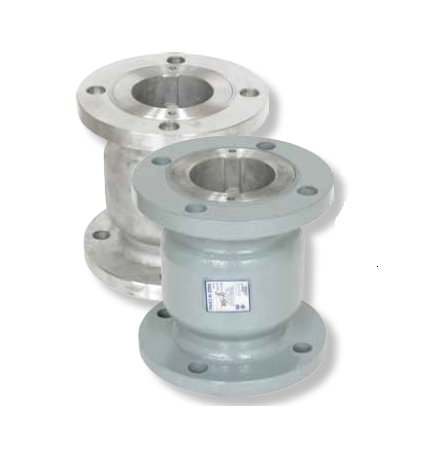

Sure Flow CF150C 6 Inch Cast Steel Silent Globe Check Valve
Sure Flow CF150C 6 Inch Cast Steel Silent Globe Check Valve
SKU:DOU-9c584a
Prevent flow reversal with Sure Flow CF150C 6" Cast Steel Silent Globe Check Valve. ASME Class 150 & ISO 9001:2008 compliant.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow CF150C 6 Inch Cast Steel Silent Globe Check Valve
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow CF150C 6 Inch Cast Steel Silent Globe Check Valve
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CF150C 6 Inch Cast Steel Silent Globe Check Valve is engineered to prevent flow reversal, reducing water hammer and system surges upon valve closure. Designed for quiet operation and available in horizontal or vertical installation, it features a guided disc for precise performance. With a valve flow coefficient of 605 and a pressure rating of 285 psi at 100°F, this valve meets ASME Class 150 and ISO 9001:2008 standards. Constructed with durable materials, including stainless steel components and Buna-N O-Ring for resilience and longevity.
Product Specifications

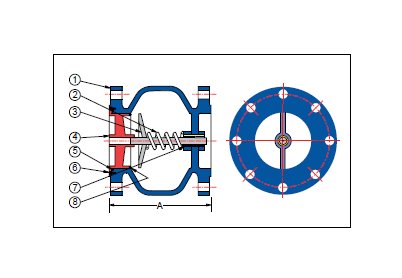

Construction Construction
Item - 1Description - Cast Body - CarbonMaterial - A216 Gr. WCBItem - 2Description - SpringMaterial - Stainless SteelItem - 3Description - DiscMaterial - Stainless SteelItem - 4Description - SeatMaterial - Stainless SteelItem - 5Description - O-RingMaterial - Buna-NItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
10 1/2 in
Dimensions Prefix Size
0600
Dimensions Shipping Weight
67 lb
Dimensions Size
6 in
Dimensions Valve Flow Coefficient Cv
605
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Specifications Material
Cast Steel
Specifications Orientation
Horizontal | Vertical
