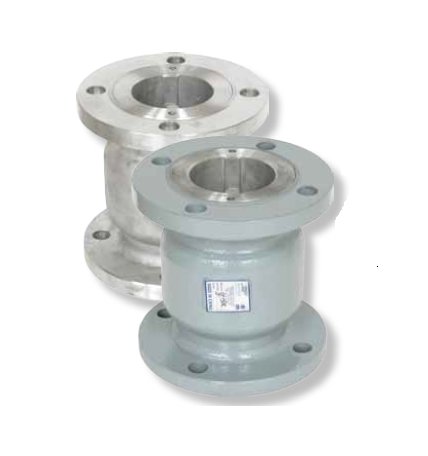

Sure Flow CF150C 8-inch Cast Steel Silent Globe Check Valve

Name: Sure Flow CF150C 8-inch Cast Steel Silent Globe Check Valve
Brand: Sure Flow Equipment, Inc.
SKU: DOU-a7b2f6
Price: 399.99 USD
Availability: OutOfStock

SKU:DOU-a7b2f6

Sure Flow CF150C 8-inch Silent Globe Check Valve - Prevents flow reversal, water hammer, and system surges. ASME Class 150 certified.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow CF150C 8-inch Cast Steel Silent Globe Check Valve is engineered to prevent flow reversal, water hammer, and system surges. Designed to close swiftly before pump cessation, it ensures quiet operation with a guided disc suitable for both vertical and horizontal installation. With a Valve Flow Coefficient of 1,105 and ASME Class 150 certification, this valve offers reliability and efficiency in demanding industrial applications.

Product Specifications

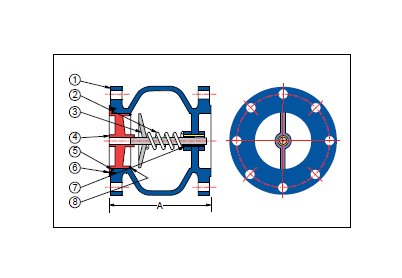

Construction Construction

Item - 1Description - Cast Body - CarbonMaterial - A216 Gr. WCBItem - 2Description - SpringMaterial - Stainless SteelItem - 3Description - DiscMaterial - Stainless SteelItem - 4Description - SeatMaterial - Stainless SteelItem - 5Description - O-RingMaterial - Buna-NItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N

Dimensions Dimension A

12 in

Dimensions Prefix Size

0800

Dimensions Shipping Weight

129 lb

Dimensions Size

8 in

Dimensions Valve Flow Coefficient Cv

1,105

Industry Standardscertifications Industry Standardscertification

American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

285 psi

Specifications Material

Cast Steel

Specifications Orientation

Horizontal | Vertical

Sure Flow CF150C 8-inch Cast Steel Silent Globe Check Valve
