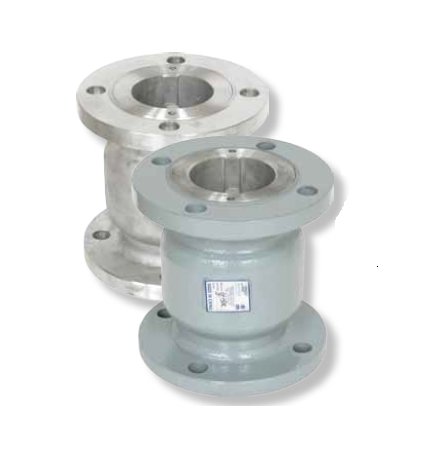

Sure Flow CF150SSC 12 Inch Cast Stainless Steel Silent Globe Check Valve
Sure Flow CF150SSC 12 Inch Cast Stainless Steel Silent Globe Check Valve
SKU:DOU-7026c6
Ensure seamless flow control with the Sure Flow CF150SSC 12 Inch Silent Globe Check Valve. ASME Class 150 & ISO 9001:2008 certified for reliability.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow CF150SSC 12 Inch Cast Stainless Steel Silent Globe Check Valve
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow CF150SSC 12 Inch Cast Stainless Steel Silent Globe Check Valve
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CF150SSC 12 Inch Cast Stainless Steel Silent Globe Check Valve is a top-of-the-line solution designed to prevent flow reversal, eliminating water hammer and system surges. Featuring quiet operation, a guided disc, and versatile horizontal or vertical installation, this valve is a reliable choice for industrial applications. With ASME Class 150 and ISO 9001:2008 certifications, the CF150SSC meets stringent industry standards. Construction materials like stainless steel ensure durability and performance. Take advantage of optional resilient seating and consult the factory for customized solutions.
Product Specifications

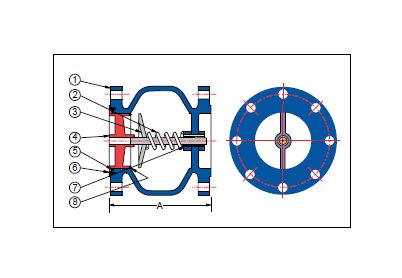

Construction Construction
Item - 1Description - Cast Body - StainlessMaterial - A351 Gr. CF8MItem - 2Description - SpringMaterial - Stainless SteelItem - 3Description - DiscMaterial - Stainless SteelItem - 4Description - SeatMaterial - Stainless SteelItem - 5Description - O-RingMaterial - Buna-NItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
18 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
321 lb
Dimensions Size
12 in
Dimensions Valve Flow Coefficient Cv
2,575
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
Specifications Orientation
Horizontal | Vertical
