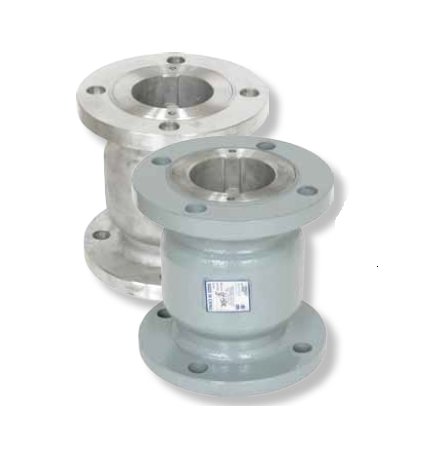

Sure Flow CF150SSC 2 Inch Cast Stainless Steel Silent Globe Check Valve
Sure Flow CF150SSC 2 Inch Cast Stainless Steel Silent Globe Check Valve
SKU:DOU-fa459c
Prevent flow reversal with Sure Flow CF150SSC 2 Inch Silent Globe Check Valve. Quiet operation, ASME Class 150 & ISO 9001:2008 compliant.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Sure Flow CF150SSC 2 Inch Cast Stainless Steel Silent Globe Check Valve
$189.99
Quantity: 1
Claim Your Seller Account
Sure Flow CF150SSC 2 Inch Cast Stainless Steel Silent Globe Check Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CF150SSC 2 Inch Cast Stainless Steel Silent Globe Check Valve is expertly engineered to prevent flow reversal, eliminating water hammer and system surges. Designed for quiet operation, this valve features a guided disc suitable for vertical and horizontal installation. Compliant with ASME Class 150 and ISO 9001:2008 standards, it offers reliable performance and durability. Constructed with high-grade materials, including stainless steel components, ensuring long-lasting functionality.
Product Specifications

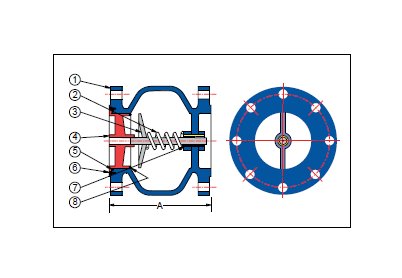

Construction Construction
Item - 1Description - Cast Body - StainlessMaterial - A351 Gr. CF8MItem - 2Description - SpringMaterial - Stainless SteelItem - 3Description - DiscMaterial - Stainless SteelItem - 4Description - SeatMaterial - Stainless SteelItem - 5Description - O-RingMaterial - Buna-NItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
6 1/4 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
14 lb
Dimensions Size
2 in
Dimensions Valve Flow Coefficient Cv
70
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
Specifications Orientation
Horizontal | Vertical
