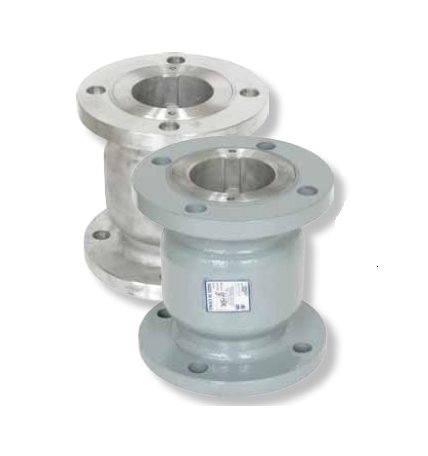

Sure Flow CF150SSC 3-Inch Cast Stainless Steel Silent Globe Check Valve
Sure Flow CF150SSC 3-Inch Cast Stainless Steel Silent Globe Check Valve
SKU:DOU-07a57b
Prevent water hammer with Sure Flow's CF150SSC 3in Silent Globe Check Valve, ASME Class 150 & ISO 9001:2008 compliant.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow CF150SSC 3-Inch Cast Stainless Steel Silent Globe Check Valve
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow CF150SSC 3-Inch Cast Stainless Steel Silent Globe Check Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CF150SSC 3-Inch Cast Stainless Steel Silent Globe Check Valve is engineered to prevent flow reversal, eliminating water hammer and system surges upon valve closure. Featuring quiet operation and a guided disc, this valve can be installed vertically or horizontally. With a Valve Flow Coefficient (Cv) of 147 and a pressure rating of 275 psi at 100°F, it meets ASME Class 150 and ISO 9001:2008 standards. The construction includes a durable stainless steel body, disc, seat, and other components, ensuring reliable performance and longevity.
Product Specifications

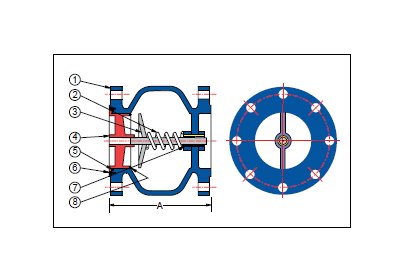

Construction Construction
Item - 1Description - Cast Body - StainlessMaterial - A351 Gr. CF8MItem - 2Description - SpringMaterial - Stainless SteelItem - 3Description - DiscMaterial - Stainless SteelItem - 4Description - SeatMaterial - Stainless SteelItem - 5Description - O-RingMaterial - Buna-NItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
7 5/8 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
25 lb
Dimensions Size
3 in
Dimensions Valve Flow Coefficient Cv
147
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
Specifications Orientation
Horizontal | Vertical
