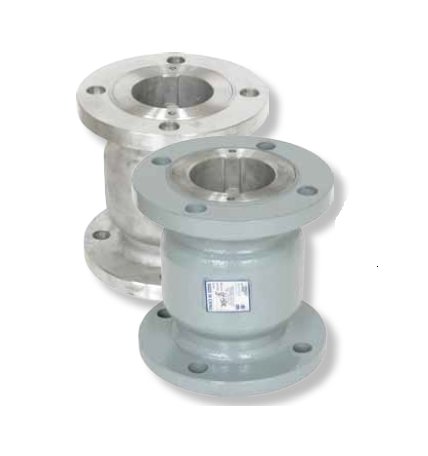

Sure Flow CF150SSC 4 Inch Cast Stainless Steel Silent Globe Check Valve
Sure Flow CF150SSC 4 Inch Cast Stainless Steel Silent Globe Check Valve
SKU:DOU-056379
Sure Flow CF150SSC 4'' Silent Globe Check Valve prevents flow reversal, reduces water hammer, and meets ASME & ISO standards.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow CF150SSC 4 Inch Cast Stainless Steel Silent Globe Check Valve
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow CF150SSC 4 Inch Cast Stainless Steel Silent Globe Check Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CF150SSC 4 Inch Cast Stainless Steel Silent Globe Check Valve is engineered to prevent flow reversal, eliminating water hammer and system surges. With quiet operation, a guided disc, and versatile installation options, this valve ensures optimal performance. Compliant with ASME Class 150 and ISO 9001:2008 standards, it features durable stainless steel construction for reliable operation in horizontal or vertical orientations.
Product Specifications

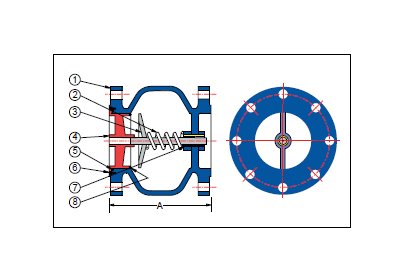

Construction Construction
Item - 1Description - Cast Body - StainlessMaterial - A351 Gr. CF8MItem - 2Description - SpringMaterial - Stainless SteelItem - 3Description - DiscMaterial - Stainless SteelItem - 4Description - SeatMaterial - Stainless SteelItem - 5Description - O-RingMaterial - Buna-NItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
8 1/2 in
Dimensions Prefix Size
0400
Dimensions Shipping Weight
41 lb
Dimensions Size
4 in
Dimensions Valve Flow Coefficient Cv
265
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
Specifications Orientation
Horizontal | Vertical
