Sure Flow CF150SSC 6 Inch Cast Stainless Steel Silent Globe Check Valve
Sure Flow CF150SSC 6 Inch Cast Stainless Steel Silent Globe Check Valve
SKU:DOU-5203d0
Prevent water hammer with the Sure Flow CF150SSC 6-Inch Silent Globe Check Valve. Quiet, efficient, and compliant with ASME & ISO standards.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow CF150SSC 6 Inch Cast Stainless Steel Silent Globe Check Valve
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow CF150SSC 6 Inch Cast Stainless Steel Silent Globe Check Valve
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow CF150SSC 6-Inch Cast Stainless Steel Silent Globe Check Valve is expertly designed to prevent flow reversal, eliminating water hammer and system surges. This valve features quiet operation, a guided disc, and can be installed vertically or horizontally. With a valve flow coefficient of 605 and a pressure rating of 275 psi at 100°F, it meets rigorous ASME Class 150 and ISO 9001:2008 standards.
Product Specifications

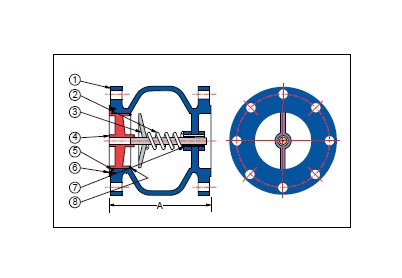

Construction Construction
Item - 1Description - Cast Body - StainlessMaterial - A351 Gr. CF8MItem - 2Description - SpringMaterial - Stainless SteelItem - 3Description - DiscMaterial - Stainless SteelItem - 4Description - SeatMaterial - Stainless SteelItem - 5Description - O-RingMaterial - Buna-NItem - 6Description - ScrewMaterial - Stainless SteelItem - 7Description - BushingMaterial - Stainless SteelItem - 8Description - Quad Ring (Optional)Material - Buna-N
Dimensions Dimension A
10 1/2 in
Dimensions Prefix Size
0600
Dimensions Shipping Weight
67 lb
Dimensions Size
6 in
Dimensions Valve Flow Coefficient Cv
605
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
It is recommended that valves be installed 7 to 10 pipe lengths away from the turbulence.Consult factory for optional construction materials and installation instructions. Optional resilient seating of Buna-N or Fluorocarbon (FKM) available for 6" size and larger.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Specifications Material
Cast Stainless Steel
Specifications Orientation
Horizontal | Vertical
