Sure Flow Class 125 ASME Flanged Cast Iron Basket Strainer - 20 Inch
Sure Flow Class 125 ASME Flanged Cast Iron Basket Strainer - 20 Inch
SKU:BAS-bb371a
Reliable Sure Flow Class 125 ASME Flanged Cast Iron Basket Strainer - 20 Inch for industrial filtration needs.
Regular price
$859.99
Regular price
Sale price
$859.99
Unit price
per
Initiate Order
Sure Flow Class 125 ASME Flanged Cast Iron Basket Strainer - 20 Inch
$859.99
Quantity: 1
Claim Your Seller Account
Sure Flow Class 125 ASME Flanged Cast Iron Basket Strainer - 20 Inch
$859.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow Class 125 ASME Flanged Cast Iron Basket Strainer in 20-inch size offers exceptional filtration capabilities for industrial applications. Constructed from ASTM A126 Class B Cast Iron with a Stainless Steel screen, this basket strainer ensures durability and efficient operation. With a maximum pressure rating of 150 psi at 150°F, it meets ISO 9001:2008 standards and delivers reliable performance. The quick-release clamped cover enhances maintenance efficiency, making it ideal for applications requiring frequent basket clean-outs.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel

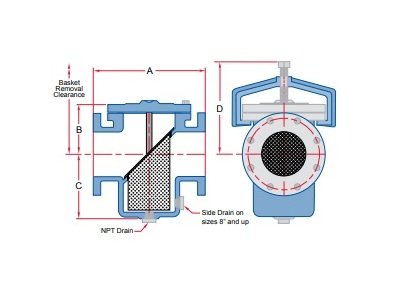

Dimensions Basket Removal Clearance
61 7/8 in
Dimensions Blow Off National Pipe Thread Npt Size
2 in
Dimensions Dimension A
33 1/8 in
Dimensions Dimension B
20 1/8 in
Dimensions Dimension C
23 5/8 in
Dimensions Prefix Size
2000
Dimensions Shipping Weight
2980 lb
Dimensions Size
20 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceDrain location may differ from image shownManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
