Sure Flow CSF125IB 10" Cast Iron Horizontal Swing Check Valve with Flanged End
Sure Flow CSF125IB 10" Cast Iron Horizontal Swing Check Valve with Flanged End
SKU:DOU-7f885f
Ensure reliability with Sure Flow CSF125IB 10" Cast Iron Swing Check Valve - ASME Class 125 & ISO 9001:2008 compliant.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Sure Flow CSF125IB 10" Cast Iron Horizontal Swing Check Valve with Flanged End
$399.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSF125IB 10" Cast Iron Horizontal Swing Check Valve with Flanged End
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

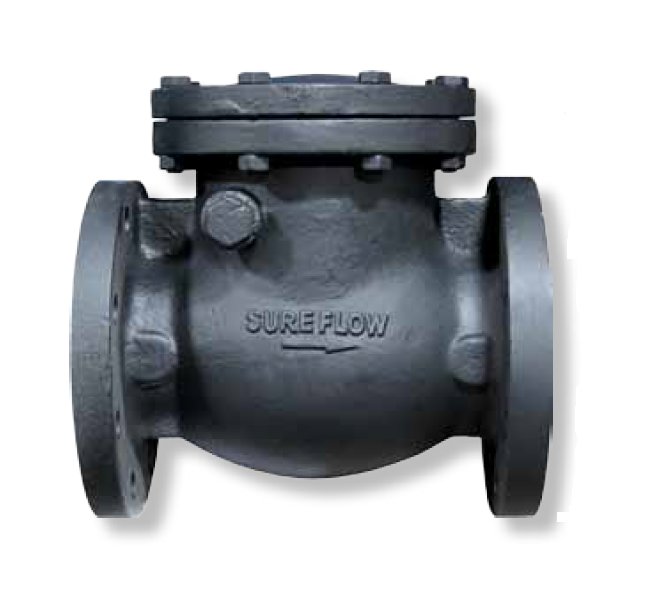

The Sure Flow CSF125IB 10" Cast Iron Horizontal Swing Check Valve with Flanged End is expertly crafted for robust performance in fluid control systems. It features a cast iron body, cover, and bronze disc ring for superior sealing. This valve is built to withstand high pressure and temperature variations, meeting ASME Class 125 and ISO 9001:2008 standards. With materials carefully selected for durability, such as stainless steel hanger pins and B62 bronze components, this valve offers reliability and longevity in demanding industrial environments. Trust Sure Flow for quality, precision, and compliance in check valve solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

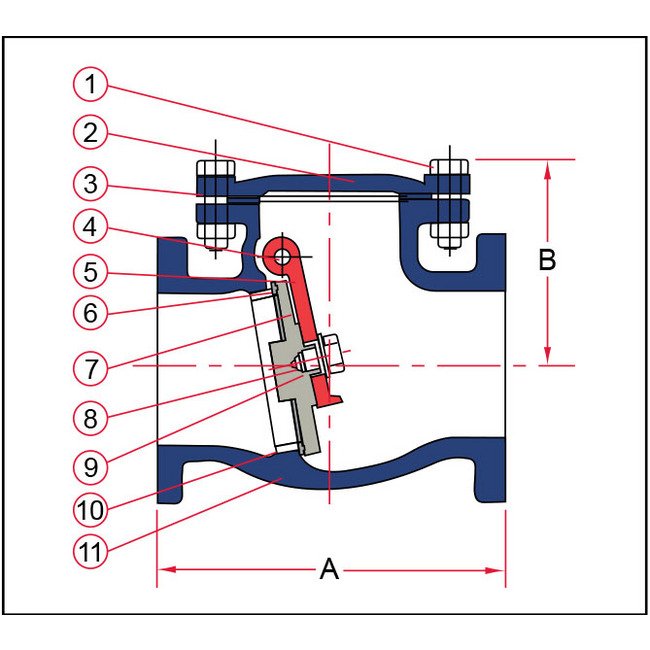

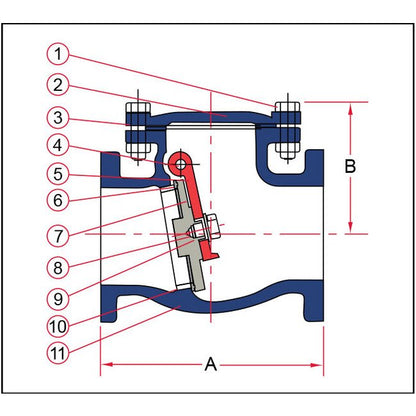

Construction Construction
Item - 1Description - Cover BoltingMaterial - SteelItem - 2Description - CoverMaterial - A126 Class BItem - 3Description - GasketMaterial - GraphiteItem - 4Description - Hanger PinMaterial - Stainless SteelItem - 5Description - HangerMaterial - A126 Class BItem - 6Description - Disc RingMaterial - B62Item - 7Description - DiscMaterial - A126 Class BItem - 8Description - Disc WasherMaterial - SteelItem - 9Description - Disc BoltMaterial - SteelItem - 10Description - Seat RingMaterial - B62Item - 11Description - Cast BodyMaterial - A126 Class B
Dimensions Dimension A
24 1/2 in
Dimensions Dimension B
12 1/4 in
Dimensions Prefix Size
1000
Dimensions Shipping Weight
572 lb
Dimensions Size
10 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Cast Iron
