Sure Flow CSF125IB 20 Inch Cast Iron Horizontal Swing Check Valve
Sure Flow CSF125IB 20 Inch Cast Iron Horizontal Swing Check Valve
SKU:DOU-4f8ee2
Reliable Sure Flow CSF125IB 20in Cast Iron Swing Check Valve for backflow prevention in fluid systems.
Regular price
$379.99
Regular price
Sale price
$379.99
Unit price
per
Initiate Order
Sure Flow CSF125IB 20 Inch Cast Iron Horizontal Swing Check Valve
$379.99
Quantity: 1
Claim Your Seller Account
Sure Flow CSF125IB 20 Inch Cast Iron Horizontal Swing Check Valve
$379.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

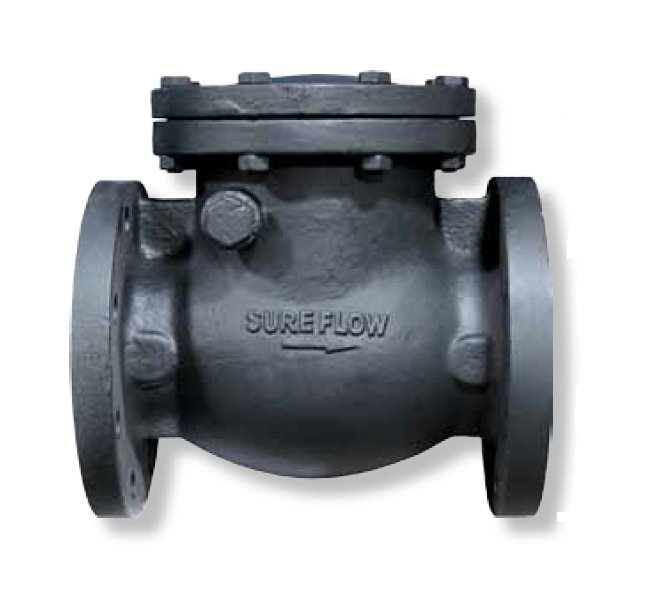

The Sure Flow CSF125IB Cast Iron Horizontal Swing Check Valve with Flanged End is a durable and reliable solution for ensuring backflow prevention in fluid systems. Constructed with a cast iron body and cover, bronze seat ring, and bronze disc ring, this valve offers superior sealing compared to standard iron facing. It can withstand varying temperatures and fluid conditions with ease. With ASME Class 125 and ISO 9001:2008 certifications, this valve is designed to meet industry standards and ensure optimal performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Construction Construction

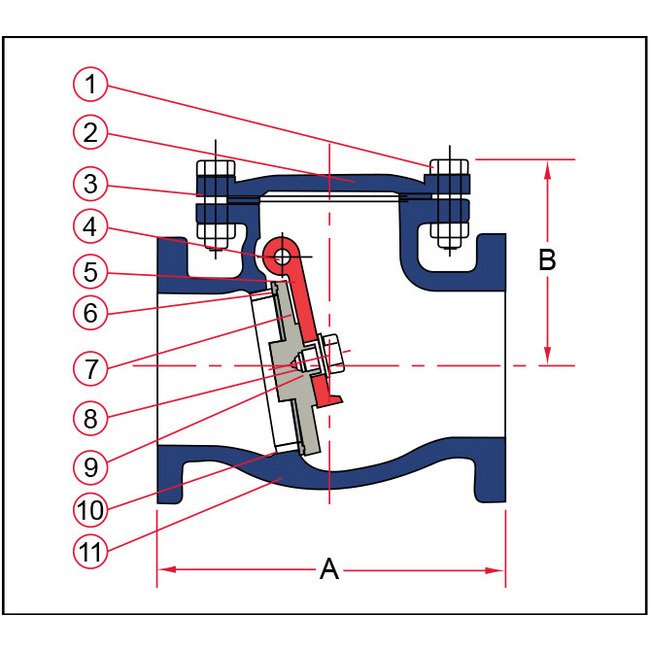

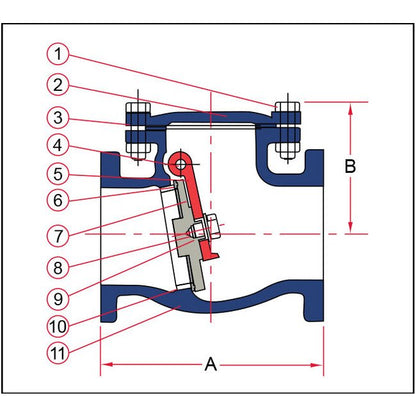

Item - 1Description - Cover BoltingMaterial - SteelItem - 2Description - CoverMaterial - A126 Class BItem - 3Description - GasketMaterial - GraphiteItem - 4Description - Hanger PinMaterial - Stainless SteelItem - 5Description - HangerMaterial - A126 Class BItem - 6Description - Disc RingMaterial - B62Item - 7Description - DiscMaterial - A126 Class BItem - 8Description - Disc WasherMaterial - SteelItem - 9Description - Disc BoltMaterial - SteelItem - 10Description - Seat RingMaterial - B62Item - 11Description - Cast BodyMaterial - A126 Class B
Dimensions Dimension A
36 in
Dimensions Dimension B
23 1/2 in
Dimensions Prefix Size
2000
Dimensions Shipping Weight
3289 lb
Dimensions Size
20 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Cast Iron
